Triton™ Series Model 90-2021
Orthodontic/Hygiene Delivery System – Self-Contained

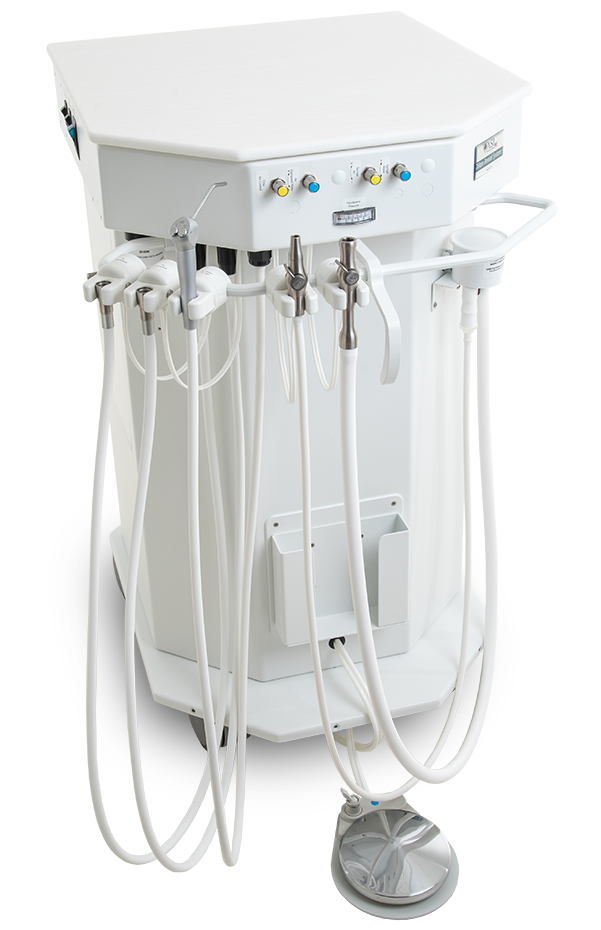

Triton™ Orthodontic/Hygiene Delivery System – Self-Contained
Model: 90-2021
Includes two pneumatic handpiece connections, air/ water syringe, straight high-volume evacuator, saliva ejector, internal air compressor, internal interval vacuum pump with electric waste purge, and dual closed water bottle system with waterline disinfection treatment cartridge. White powder coat finish, solid surface worktop, and heavy-duty 4″ casters.
“I love the ease of use and the placement of handpieces/suction. Very strong suction. Quiet running.”
– Alane Eisenbrandt, Main Street Dental Hygiene
“Unconditionally this is the best mobile dental unit in dentistry. ASI is a brilliant company who has taken pride in developing a product line like no other on the market. Thank you for putting the time in, all the best in the new year.”
– Dr. Tanner Doering
Product Details
Features & Benefits
The Orthodontic/Hygiene dental cart is a fully self-contained portable dental delivery system. It is internally equipped with a water system, an internal oil-less air compressor, and suction system. The air system powers handpieces and pressurizes the water system, while the suction system allows operation of the included titanium high volume evacuator (HVE) and saliva ejector. A connection to central utilities is not required. Just plug it into a standard electrical outlet.
- Suction Exhaust Bacteriostatic Filter to filter air exhaust down to .2 microns for bacterial and viral agents
- Internal Air Compressor and Vacuum Pump
- One High Speed Air-Driven Handpiece Connection
- One Low Speed Air-Driven Handpiece Connection
- Titanium HVE, Saliva Ejector and Air/Water Syringe
- Dual closed water bottle system
- Stainless Steel Control Block, Valves and Handpiece Connections
- Plugs in to a standard electrical outlet
- Ideal for two handed dentistry
Custom handpiece holders accommodate most popular brands of handpieces. The ratcheting design allows for optimum positioning.
Convenience Features
Includes air, water and electrical outlets for utilizing table top accessories.
Bracket Storage Options
ASI’s 12 sided rail system to allow a variety of optional storage accessories to be added.
Structural
- 1/8″ Thick Aluminum Chassis
- Heavy Duty Commercial Dual Tread Casters are Quiet & Easy to Roll
Finish
- Durable Powder Coat Finish
- WilsonArt Work Top – Arctic Dune Color

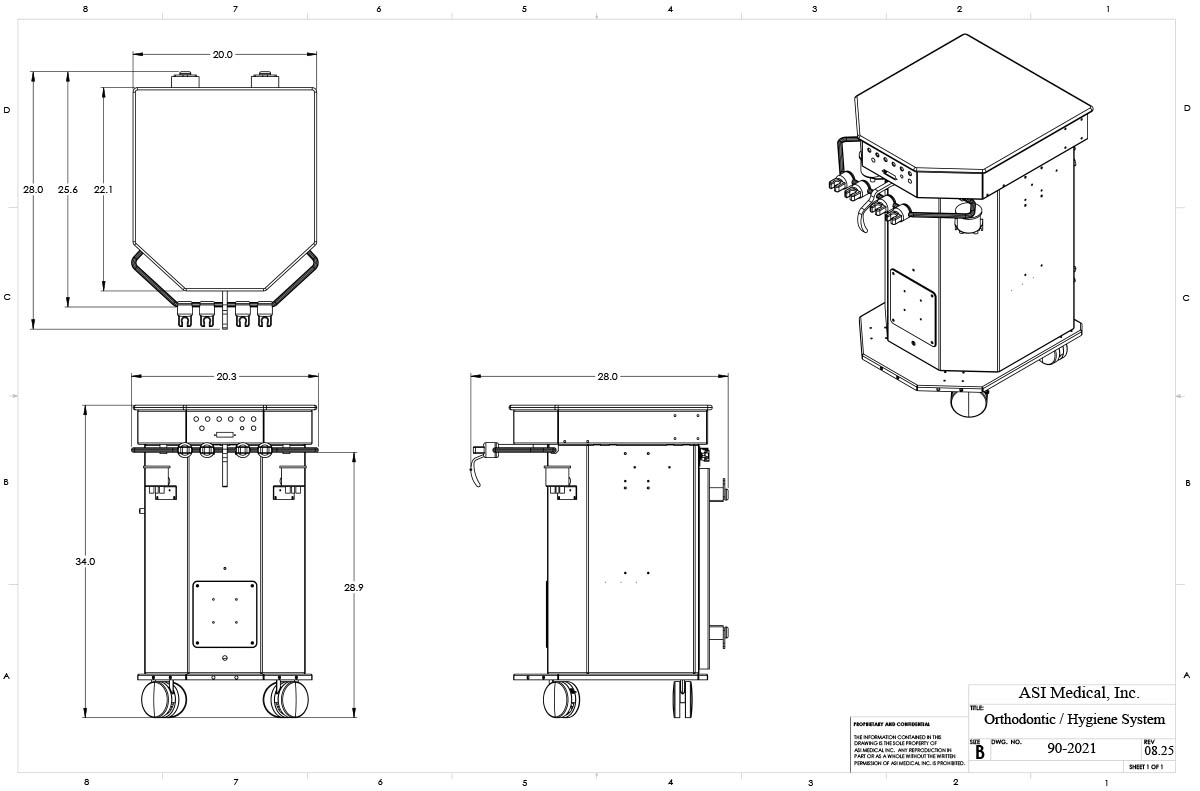

Dimensions
Triton Model Comparison
Download CAD file
