Dental System Options

For ASI’s Triton Portable Delivery Systems

Handpieces Integration Suction & Amalgam Separation The Rover Trays & Monitor Mounts Casters, Holders & Handles Utility Connections

Handpieces

Model 90-2762E

Upgrade your High Volume Evacuator (HVE) with ASI’s precision machined titanium Ergo Angle handpiece. Quality design and ergonomic features provide quality design and ease of use. Features ASI’s exclusive single side valve design and swivel disconnects at base. Handpiece and barb only. [90-2762E]

Model 90-2701

Additional Air and Water Syringe. This syringe provides a quick disconnect tip with an outer press ring release. It accommodates disposable tips for this type of syringe. The Air/Water syringe features a rounded head style for ease of cleaning. Air and water flow is controlled with individual adjustment knobs on the delivery system. [90-2701]

Model 90-2735

Full Pressure Air Only Syringe. This is a single button syringe with a quick disconnect tip and adjustable air flow control. Since water spray is removed there is no possibility of moisture in the tip that could be sprayed out. The incoming air to the syringe is filtered in the handle. This prevents moisture from condensation in the air line from being emitted. A dry air pattern is created for pre-restorations. [90-2735]

Integration

Model 90-5166

Optima MCX Motor, Analog

— from Bien Air

For Triton™ series only.

price includes installation

Model 90-5170

W&H Micro Motor System – Analog

Electric High/Low Speed Motor system with analog speed control knob. Includes one EM-12L Motor that accepts all E style contra angle handpieces.

Model 90-5274

ELECTROmatic Premium, Single

— from KaVo

Perfect control and programmable speed settings allow the stable running of the bur.

Dual Motor option KaVo ELECTROmatic Premium – [Model 90-5274D]

The color LCD Display shows the actual motor speed and the three speed programs are easy to set-up. This allows a fast set-up for all high-speed and low-speed applications.

KL703 LED Motor (100 – 40,000 rpm) or COMFORTdrive option (20,000 – 200,000 rpm).

Perfect balance – light weight LED light (25,000 LUX).
Spray water regulation on motor tube.
Auto-calibration (air pressure).
Right/left rotation.
All-in-one with a prep and endo mode.
5 speed programs in prep mode.
Vivid color touch display for intuitive set-up.
Endo workflows with each up to 10 files.
Preset Endo file systems.

Model 90-5420

Satelec Ultrasonic, Analog

The Newtron™ technology ultrasonic module from Satelec.

Designed for the ultimate in full power range while providing integrated feedback to provide constant ultrasonic vibration to the tip. This allows you to adjust the power lower for sensitive endodontic tips, yet maintain the proper movement while bearing down. Full power at the high end allows you to easily remove posts.

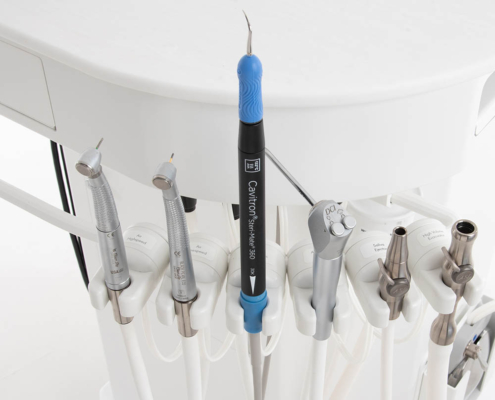

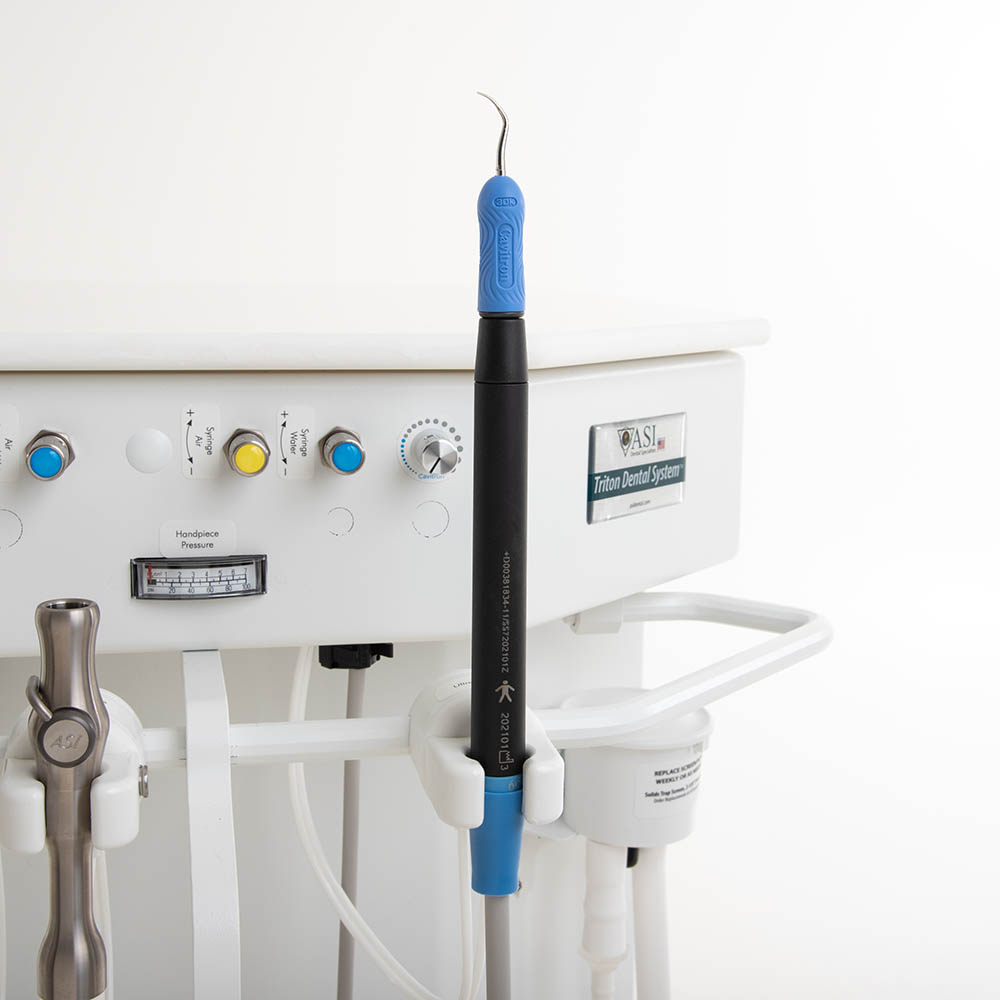

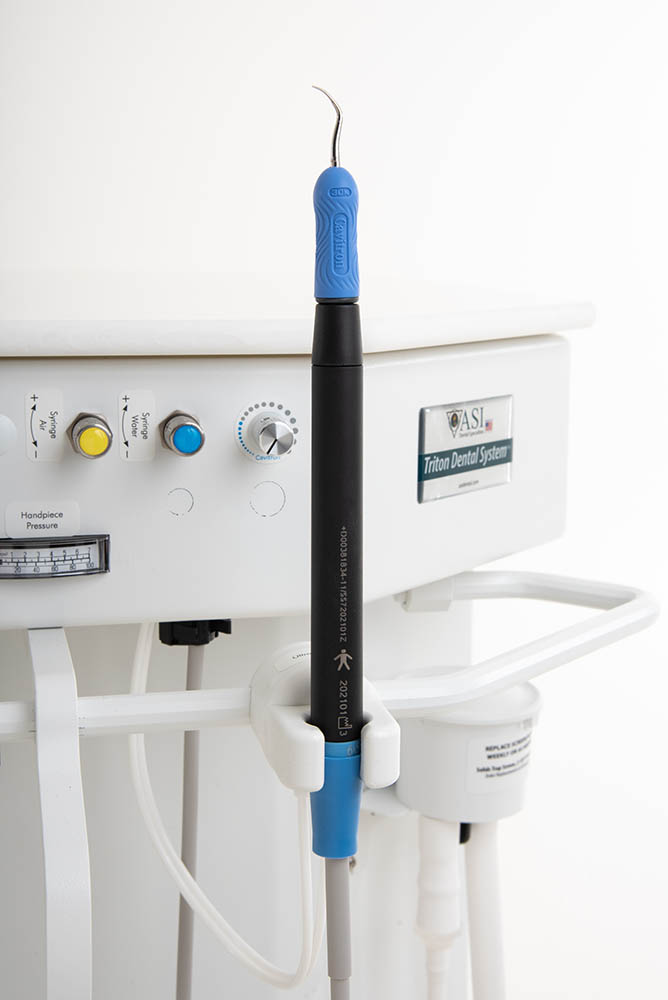

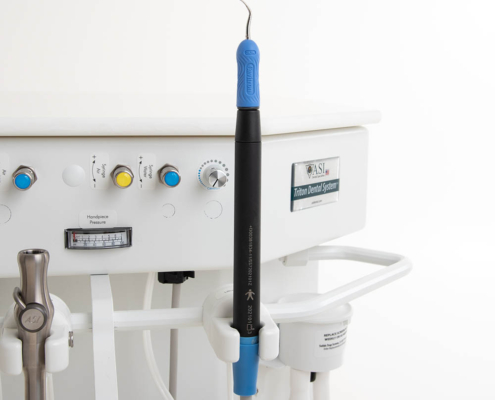

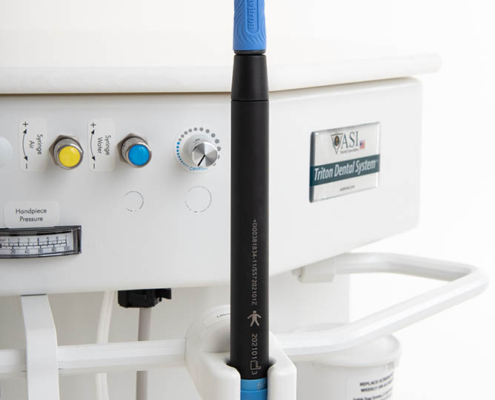

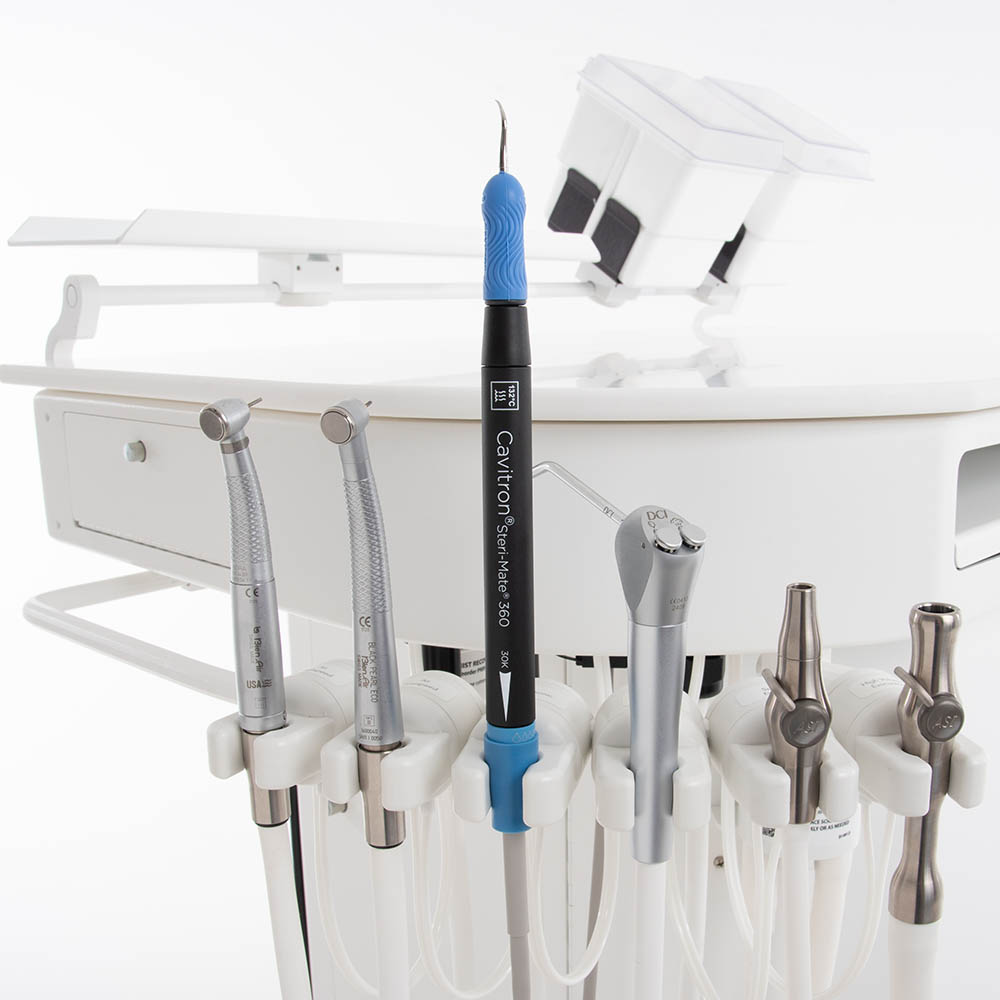

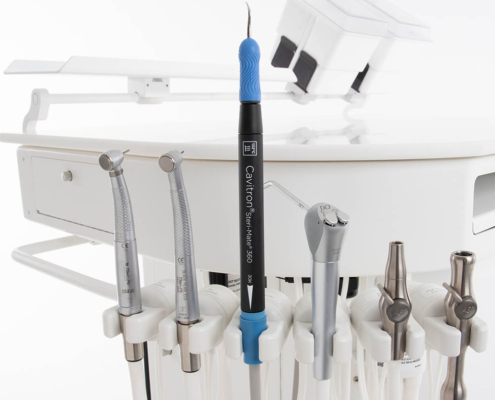

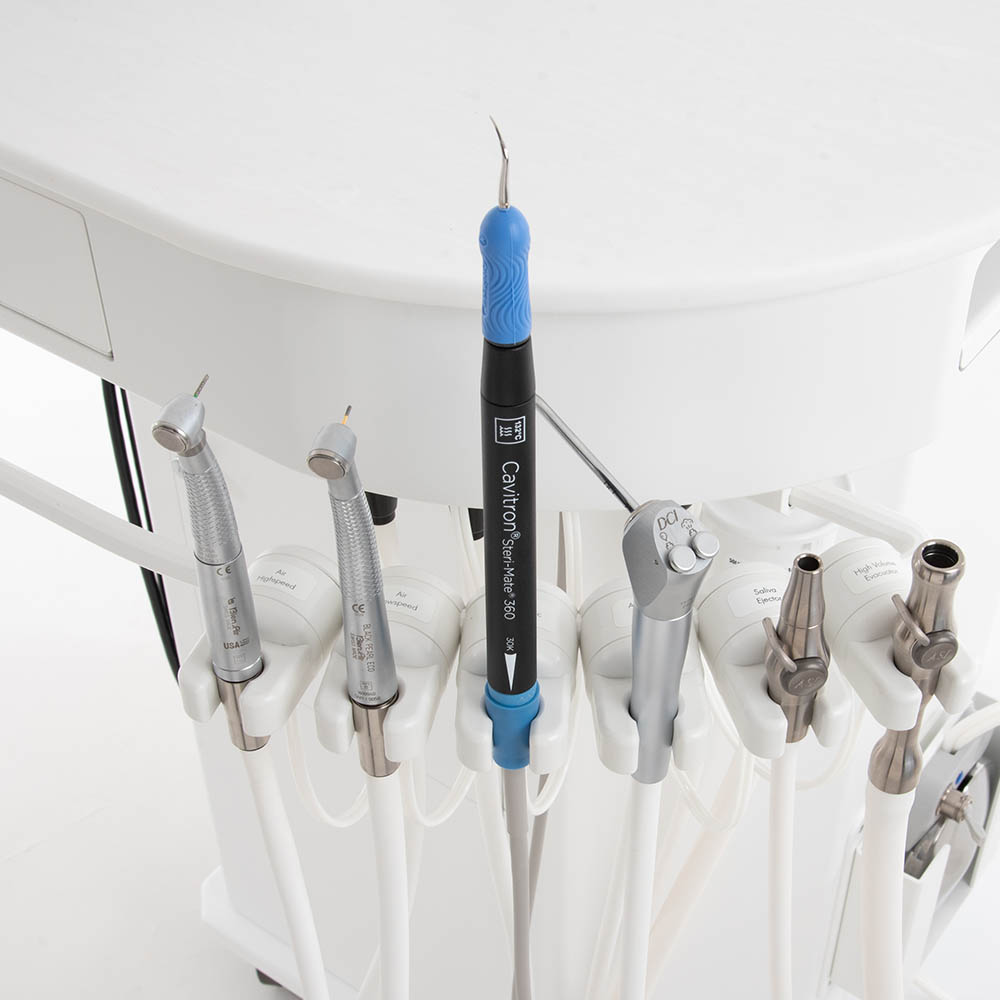

Model 90-5434

Cavitron Steri-Mate 360

From Dentsply Sirona

Integrated Cavitron Ultrasonic with Steri-Mate 360 Handpiece

Handpiece insert rotates within the handpiece eliminating the need to stop and make adjustments and reducing wrist movements during procedures. It includes a custom-fit handpiece holder designed for the handpiece and a power adjustment knob on the control panel of the cart.

Model 90-5012S & 90-5012L

Fiber Optics – Single Connection

Five/six-pin fiber optic system for a single handpiece. Includes 50″ or 60″ of handpiece tubing.

About Fiber Optics 5 Hole or 6 Pin Connections

ASI’S pneumatic connections are standard and accommodate handpieces made to ISO standards. The connection provides:

Drive Air – Air travels up the tubing to operate the turbine in high speed handpieces or the air motor in air-driven low speed handpieces.

Exhaust Air – As drive air leaves the turbine or air motor, it exhausts down this tubing and exits through the oil mist recovery jar.

Chip Air – An air stream which blows onto the cutting bur; assists in removing debris; aids in visibility and cutting while using a highspeed handpiece. Also used to atomize coolant spray. Not all air driven high speed handpieces are ported for chip air; verify this option for the brand of handpiece being used.

Coolant Spray – Allows water to flow up to high speed handpieces and to be sprayed onto the bur.

Blank Hole or Fiber Optic Connection – Non-operative, but allows the use of fiber optic handpiece in standard non-fiber optic connection. If tubing is fiber optic, it will have a bulb for 5-Hole connections or two sockets for 6-Pin fiber optic handpiece connections.

Model 90-5054

VALO Curing Light

— from Ultradent

The highly rated LED curing light by Ultradent.

An ideal all-in-one system that fits into a handpiece holder for easy access. The system includes five LEDs and cures all brands and ranges of resins. The optional Endo Guide Tip is ideal for retrofills and other narrow preparations. The system package also includes orange and green transilluminator tips for identifying caries, cracks and tooth defects.

Includes holder.

High Flow Suction System Upgrade & Amalgam Separation

Model 90-2822

High Flow Suction System Upgrade

The high flow vacuum provides 20% extra flow, which can better capture aerosols during treatment. The added flow can improve suction performance with simultaneous use of the saliva ejector and high-volume evacuator or when using a second HVE for nitrous oxide scavenging applications.

Model 90-2816

Disposable Amalgam Separator

This disposable amalgam separator mounts to the back door of self-contained systems with internal vacuum pumps.

The internal suction canister is purged through the separator to capture amalgam particles. A dove-tail bracket design with push-to-release connectors simplifies replacement of cartridges.

The separator is designed as a Type 3 amalgam separator, and is tested to ISO 11143. The filter should be changed every six months or sooner, depending on usage.

The Rover™

Mobile Suction Cleaning Station – Model 90-9201

The Rover is a companion product to ASI Dental’s line of self-contained dental carts. It is designed to facilitate ease of cleaning for offices with multiple units. The Rover easily rolls into each room and can be placed alongside the ASI Triton systems to empty their contents.

Each Triton suction system purges into the large 5-gallon container in the Rover. The Rover also stores a ready supply of suction cleaner, concentrate, a rail system for holding wipes and disinfectant, and a small storage drawer for solids traps and other accessories to make cleaning turnaround of the carts easier.

The Rover is equipped with an Amalgam Separator to eliminate the need to have redundant ones on each Triton self-contained cart, therefore reducing cost and improving purging speed.

The Rover has the capacity to service four Triton carts before needing to be emptied and cleaned. Roll the station into a utility room, plug it into an electrical outlet, and then purge the contents into a drain or quick connect to plumbing.

Click Here for more information

Instrument Storage Trays & Monitor Mounts

Model 90-T001

Arm Mounted Tray

With swivel and dual pivoting arm.

Swivel tray is 13.7” x 9.5”.

Model 90-K001

Ambidextrous 12″ x 9″ Tray Mount for Miniature Keyboard

Includes 16″ dual pivoting arm
Fits on a 2″ post mount (not included)

Model 90-1803

Monitor Mount for Cart Systems, Standard

VESA-compliant, fits most flat-screen monitors. Features adjustable arm and swivel action. Attaches to side or rear of cart units. Monitor is not included. Ideal for Classic and Smaller Carts. Weight restrictions up to 20 lbs.

Optional post mounted keyboard tray pictured in gallery, PN 90-KP16

Model 90-1806

Monitor Mount for Cart Systems, Heavy Duty

VESA-compliant. Mounts to the side or rear of any cart with supplied 2” post-riser and brackets. Monitor is not included. Ideal for Designer and Larger carts. Weight restrictions up to 28 lbs.

Optional post mounted keyboard tray pictured in gallery, PN 90-KP16

Model 90-1827

Sliding Monitor Mount for Ambidextrous Systems

VESA-compliant, fits most flat-screen monitors. Features adjustable arm and swivel action. Attaches to rear of cart units. Monitor is not included. Slides to either side of the cart and up and down. Can only be used with 90-1054 and 90-2054 systems.

90-1816

CPU Shelf

L-shaped shelf for holding small-to-mid size CPUs. Includes Velcro strap to secure CPU. Attaches easily to ASI delivery systems. Shelf depth is 4.75” and width is 10”. Ideal for Classic Series Advanced delivery systems or the side of Triton Series Self-Contained delivery systems.

Casters, Holders & Handles

Model 90-2708 & 90-2810

Upgrade 3″ Casters to 4″ or 5″ Casters

Upgrade Your Mobile Dental Unit Casters.

Standard Caster: 3-Inch Regular

4-Inch Regular Caster [90-2708]
5-Inch Regular Caster [90-2810]

All caster upgrades are sold as a set of 4.

Larger Casters will raise the height of the cart and will roll easier over uneven surfaces.

Models 90-H003 & 90-H001

Holder Bars

Add an instrument holder bar to your ASI Mobile Dental System.

NEW Dual pivoting holder bar with riser [90-H003] (pictured)
Single pivoting holder bar [90-H001]

Up to 5 handpiece holders can be placed on bar.

Model 90-B022

Heavy-duty Lifting Handles

Set of 2 with template. Can be mounted to sides of the Triton Dental Carts to create a lower lifting handle to lift the cart up into vans.

Utility Connections

Model 90-2800

Airline Quick Connect for Self-Contained mobile dental systems to bypass the internal air compressor and utilize a central air compressor instead. [90-2800]

Model 95-0428

Suction Line Quick Connect for Self-Contained mobile dental systems. For bypassing the internal vacuum system to utilize an external centeral vacuum. [95-0428]

Model 90-2712

Waste Purge Quick Connect for hands-free purging. Attach quick connect fitting to cabinetry. [90-2712]

Model 90-1831

External Suction Exhaust Connection Kit – Self Contained Vacuum Systems [90-1831]

Ideal for exhausting nitrous oxide fumes from scavenging and suction air flow externally out of the treatment room and outside of the building. Utilizes a flexible hose that quick connects to the suction exhaust port located on the back of the ASI Triton carts and then connects to a wall plate that can be installed by a plumber to connect to an external exhaust piping. Multiple rooms can be equipped with a kit and connected to master trunk exhaust pipe.

Connection Kit includes flexible exhaust tubing with quick connect fittings, wall junction box and diagrams for installation.

Model 92-TLLC1200

1,200 Watt power conditioner for correcting slight under or over-voltage conditions [92-TLLC1200 ]

Models 90-9001, 90-9002, 90-9003

Mobile Utility Carts [90-9001, 90-9002, 90-9003]

90-9001 – Mobile Utility Cart with Air Compressor
Self-contained oil-less air compressor identical to ASI’s Triton Dental Systems with a powerful and very quiet operation. Provides a regulated air supply of 80 psi to provide a mobile point-of-use air compressor for powering dental delivery units and other devices in the dental operatory.

90-9002 – Mobile Utility Cart with Vacuum System
Self-contained vacuum system with collection canister and electrical purge system. Provides mobile point-of-use system to provide a suction source for dental suction handpieces. Allows umbilical connection into the utility cart.

90-9003 – Mobile Utility Cart with Air Compressor and Vacuum System
Dual self-contained system with both an air compressor and vacuum system for a complete mobile dental utility room for point-of-use within the dental operatory. Features an oil-less air compressor systems identical to ASI’s Triton Series mobile carts. Powerful and very quiet operation.
