Model 2143
1

Classic Series Dental Delivery System with Door

Economical, smaller footprint, makes a great starter system.

2

Instrument Integration
Integrate your instruments in the order you prefer. Bracket mounted options are also available.

3

Wilsonart Worktop

Solid surface worktop with neutral color tones.

4

Bracket Mounted Integration
Fully integrated panel and bracket with heat shield mounts to holder bar.

5

Internal Access Door
Pull out slide houses water and optional irrigation system.

6

Optional Monitor Mount

Monitor not included.

7

Customize Your Worktop

Upgrade to one of ASI’s Silestone worktops, or have it cut from a granite slab to match your existing counter tops as shown here.

8

Future Upgrade

With five available instrument panels, you may choose to leave one or more blank and upgrade your system as new technology becomes available.

9

ASI’s In-Wall Junction Box

Neatly organizes and conceals all utility, I.T. and power connections.

Model Features

The Classic Door model features a door with enclosed water bottles on a slide out panel. If you choose to add ASI’s RootDown™ Irrigation to your system, those bottles are mounted here as well. Bottles are completely concealed and easily accessed. The door is positioned on the right side of the cart.

  • Clean design with bottles stored inside chassis
  • Additional internal room inside lower compartment for instrument storage
  • Ideal for Side Instrument Delivery Cart
  • Compact Design fits well in smaller operatory designs

Dental Delivery Unit

Advanced modular panel design for full electronic instrument integration make it possible to operate numerous handpieces through just one foot control, eliminating clutter and confusion while creating a positive ergonomic environment. Modular panel design provides the ability to upgrade the system to new instrument technologies.

Standard features includes two high speed and one low speed air-driven handpiece connections, air/water syringe, air-only bonding syringe or endodontic Stropko™ air-only syringe and dual closed water bottle system. Stainless steel control blocks, valves and handpiece connections.

Custom handpiece holders accommodate most popular brands of handpieces. The ratcheting design allows for optimum positioning.

Convenience Features and Options

  • Includes air, water and electrical outlets for utilizing table top accessories.
  • USB connection option.
  • Bracket ready to accept CPU and monitor mounts.

Bracket Storage Features

Includes ASI’s 12 sided rail system to allow a variety of accessory storage options to be added.

Structural

  • Full one eighth thick wall aluminum chassis with durable powder coat finish.
  • Non porous engineered work top.
  • High duty commercial dual tread casters feature quiet and easy rolling design.

Finish

  • Colorado Beige powder coat finish.
  • WilsonArt™ “Whitewater 9198EA” solid surface worktop.

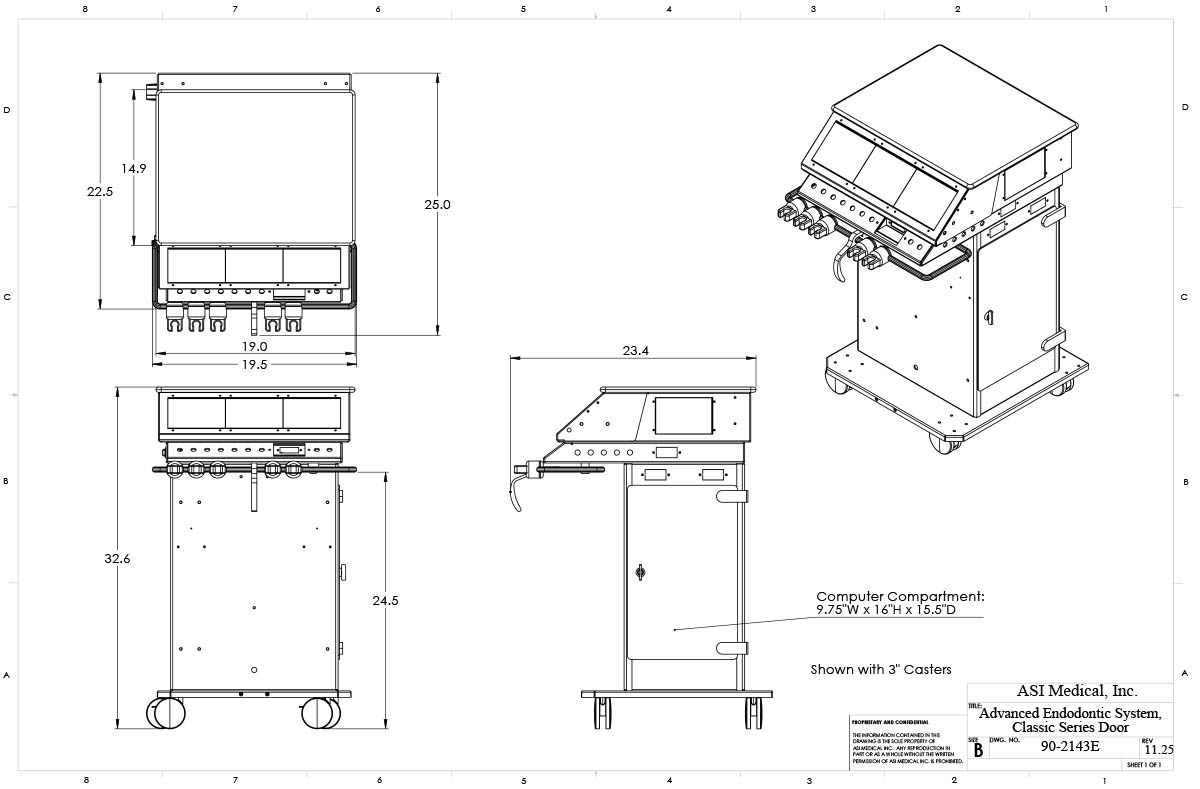

Classic Series Door Dental Delivery System

Model: 90-2143

Door on right side of chassis provides convenient access to concealed water bottles inside. Water and optional irrigation bottles can be conveniently accessed by sliding out. Custom configure instruments with ASI Advanced modular panel design.

Choose Model

Advanced Dental Version – Model 90-2143D with air only bonding syringe and Advanced Dental System badging. Fully functional dental system includes standard features: see product details.

Advanced Endodontic Version – Model 90-2143E with Stropko Endo air only syringe and Advanced Endodontic System badging. Fully functional dental system includes standard features: see product details.

Build Your Own

Use the options below to configure your system and see pricing.

(*) Indicates required field.

$7,950.00

SELECT YOUR SYSTEM *

APEX LOCATORS

ELECTRIC ROTARY

ELECTRIC HIGH-LOW SPEED MOTORS

FIBER OPTIC HANDPIECE TUBING UPGRADE

LIGHTING INSTRUMENTS:

OBTURATION – BACKFILL INSTRUMENTS

OBTURATION – HEAT TIPS

ULTRASONICS

SYRINGES

IRRIGATION

MICRO EVACUATION & SUCTION

HOLDER BARS

ARM MOUNTED TRAYS

UMBILICAL OPTIONS

CHAIR CONTROLS

MONITOR MOUNTS

KEYBOARD MOUNTS

COMPUTER CONNECTIONS

CASTERS & HEIGHT ADJUSTMENT
