Holder Bars & TraysAir/Water Syringes & IrrigationSuctionCPU Mounts & ConnectionsAccessory BracketsMisc. BracketsCastersUtilities
Holder Bars & Trays
90-HR12S
Instrument Holder Bar
- Dual 12″ pivoting holder bar with a 4″ riser
90-TR16
Arm-Mounted Tray with Double Swivel and 4″ Riser
- Select 6″ riser for Classic or 8″ riser for Designer
90-TR10
Arm-Mounted Tray with Single Swivel and 4″ Riser
- Select 6″ riser for Classic or 8″ riser for Designer
90-HH4S
Instrument Holder Bar, Straight
- Single pivoting bar for up to five holders
90-HH4T
Instrument Holder Bar, “T” Shape
- Single pivoting bar for up to five holders
90-TR16
Arm-Mounted Tray with Double Swivel and 4″ Riser
- Select 6″ riser for Classic or 8″ riser for Designer
90-AE01, 90-AE02, 90-AE03
Extension Arm
- 4″, 8″, 12″ Extension Arms
Air/Water Syringes & Micro Irrigation
Stropko Adaptors, Micro Irrigation
90-2701
Additional Air/Water Syringe
- ASI’s air and air/water syringes are push-ring release style.
90-2701E
Additional Endodontic Air/Water Syringe, 2” Stropko™ Adaptor
- Includes precision regulator and gauge
90-2735
Air Only Bonding Syringe with Filter
- Used for bonding and drying; includes internal drying filter within handle
90-2735E
Endodontic Air Only Syringe with 2” Stropko™ Adaptor
- Includes precision regulator and gauge. Compressed air is controlled by the precision regulator within the delivery system. This adjustable regulator comes preset, but can be adjusted by the Doctor to suit personal preferences.
90-2752
Stropko™ Irrigator Adaptor, 2”
- Luer lock connection. Attaches to air only or air/water syringe.
90-2753
Stropko™ Irrigator Adaptor, 4”
- Luer lock connection. Attaches to air only or air/water syringe.

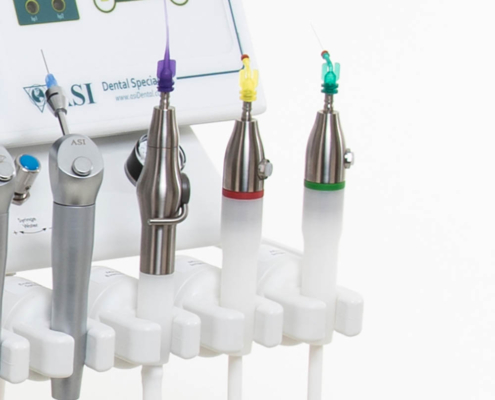

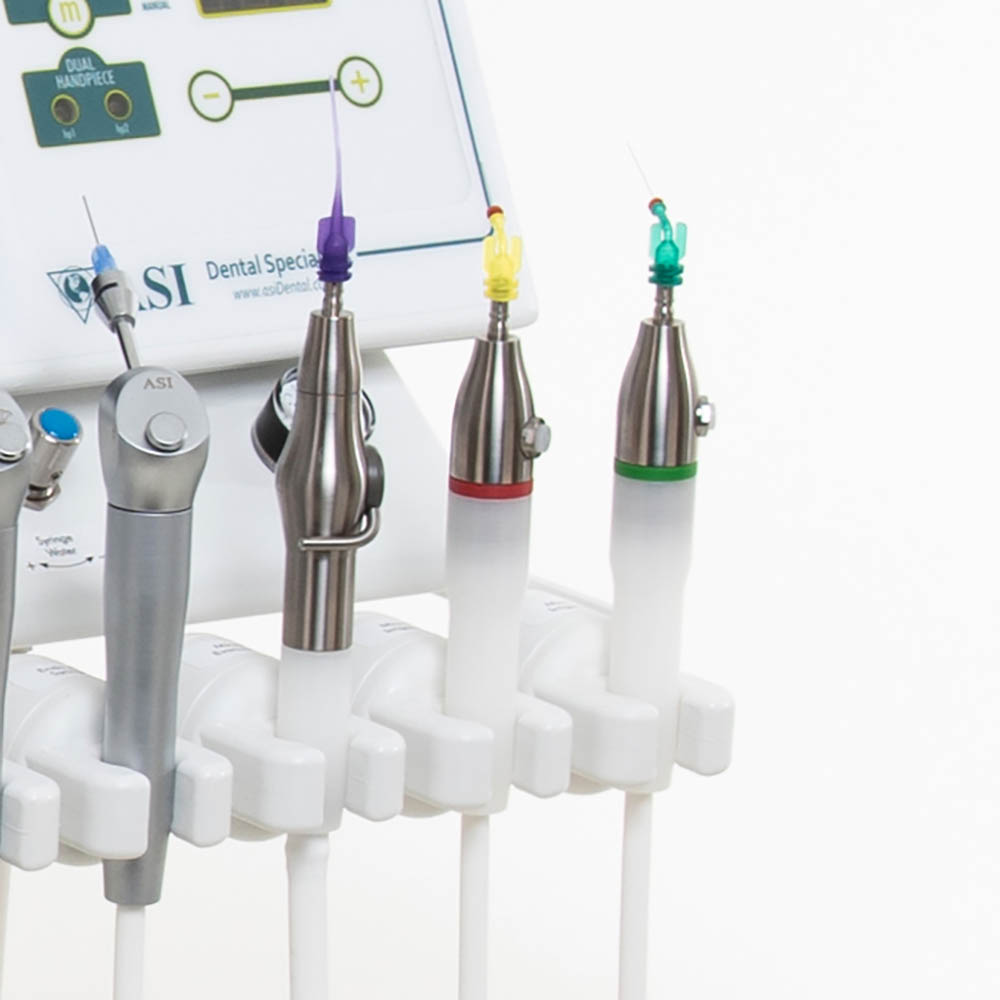

90-2741S, 90-2741D, 90-2741T
Single Irrigator, Dual Irrigator, Triple Irrigator
- Irrigation system with one, two, or three color-coded irrigator and solution bottles
90-2809S, 90-2809D, 90-2809T
Active Irrigator Upgrade, Single, Dual or Triple
- Active vibration of the irrigation needle to gently agitate the solution in the canal. ASI’s micro irrigation system is required for this upgrade.
90-I227
Holder Endo Activator
Suction
Self-contained systems can have up to two HVE connections, up to two saliva ejector connections, or a single saliva ejector and micro evacuator.
90-2707
Additional Suction Connection, Saliva Ejector
- Includes titanium saliva ejector handpiece, tubing, barb connection, and handpiece holder
90-2742C
Additional Suction Connection, Micro Evacuator
- Includes titanium micro evacuator handpiece, tubing, barb connection, and handpiece holder

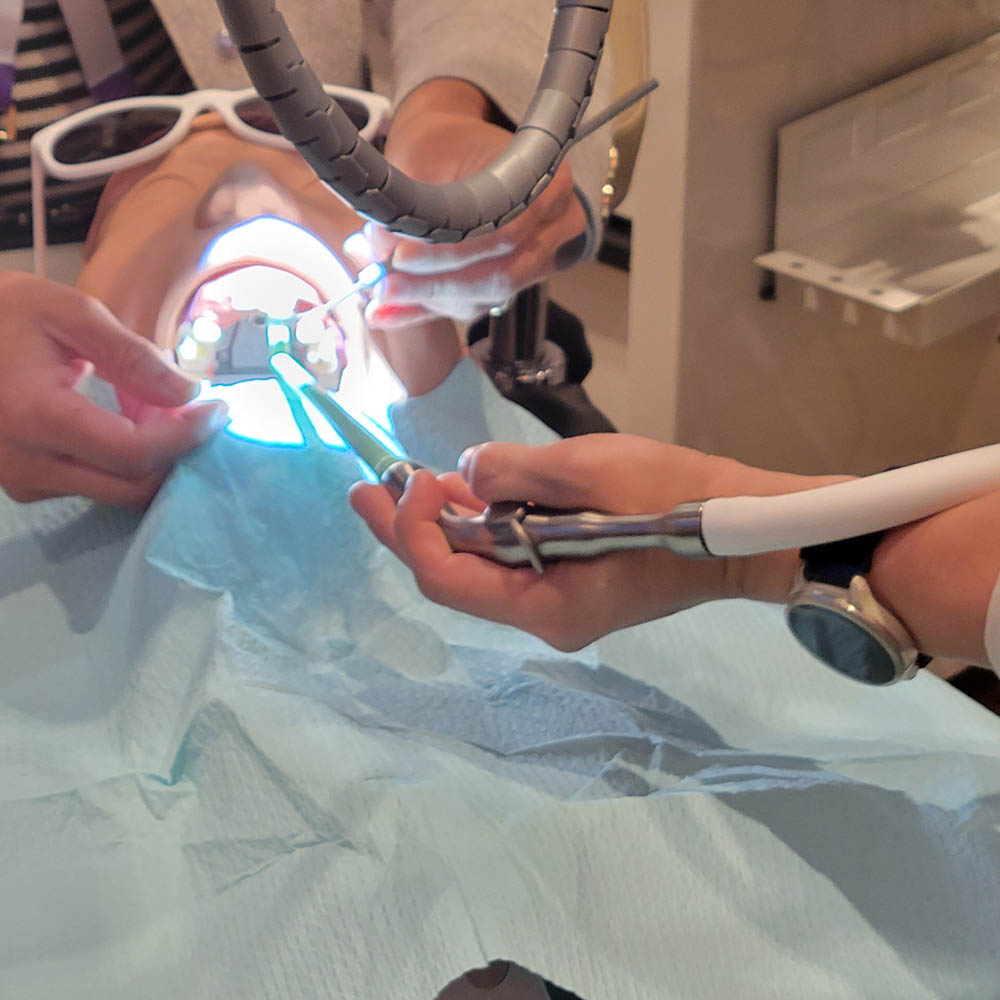

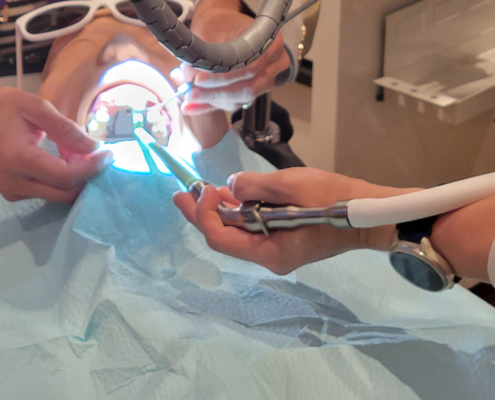

90-2706E
Additional Suction Connection, Ergo Angle HVE
- Includes titanium Ergo Angle HVE handpiece, tubing, barb connection, and handpiece holder
90-2770
Additional Suction Connection, Straight HVE
- Includes titanium straight HVE handpiece, tubing, barb connection, and handpiece holder
Computer Hardware Mounts & Connections

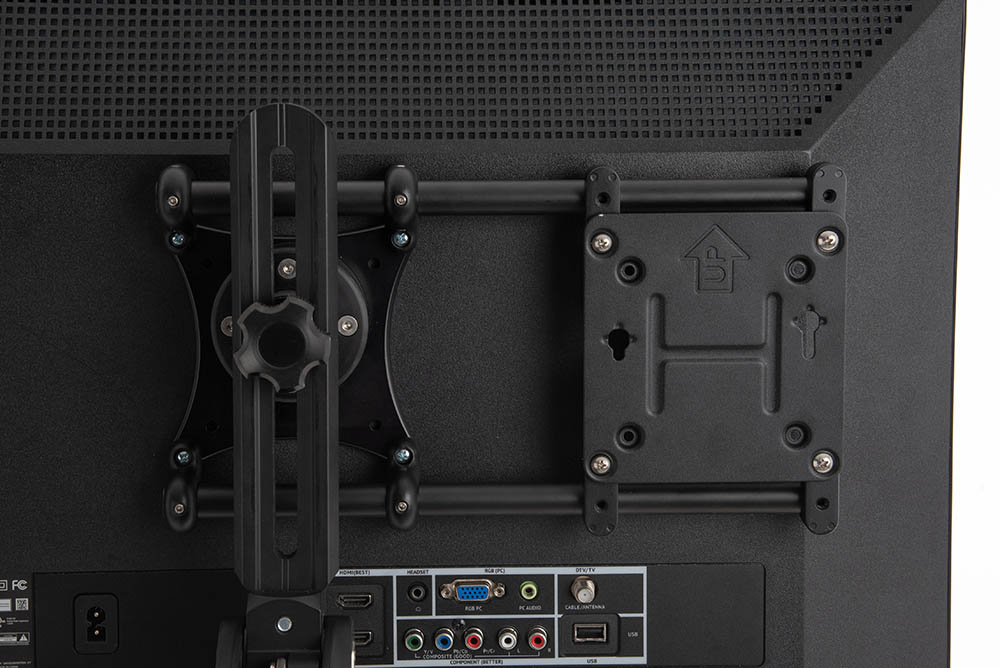

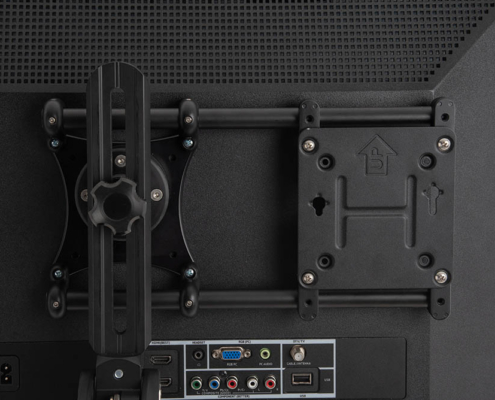

90-1803
Monitor Mount for Cart Systems, Standard
VESA-compliant, fits most flat-screen monitors. Features adjustable arm and swivel action. Attaches to side or rear of cart units. Monitor is not included. Ideal for Classic and Smaller Carts.
90-1806
Monitor Mount for Cart Systems, Heavy Duty
VESA-compliant. Mounts to the side or rear of any cart with supplied 2” post-riser and brackets. Monitor is not included. Ideal for Designer and Larger carts.
90-1827
Sliding Monitor Mount for Ambidextrous Systems
VESA-compliant, fits most flat-screen monitors. Features adjustable arm and swivel action. Attaches to rear of cart units. Monitor is not included. Slides to either side of the cart.
90-1821
Standard HDMI Cable
- 28 AWG, 15-foot
90-1812
CAT 6 Network Cable
- 25-foot; installed
90-1816
CPU Shelf
L-shaped bracket holds all small-to-mid size CPU’s. Includes Velcro strap to secure CPU. Attaches easily to ASI cart systems. Shelf depth is 4.75” and width is 10”.Cannot attach to self-Contained carts.
90-1822
Post Riser Assembly
- 2” diameter post-riser and brackets.
90-1810
Cable, USB Repeater
- 16-foot; installed. A-A, Male-Female
90-1705
International Power Strip
90-1811/15
Video Extension Cable with Disconnects
- 15-foot; installed
90-1822M
Mora Vision Post Bracket Mount
90-1817
Laptop Mount
- Fits on 2” post
90-1823
USB 3.0 Single Port Panel Mount
- Mount on one side of chassis
90-KP16
Ambidextrous Keyboard Mount for Miniature Keyboard
- Fits on 2” post mount; post not included.
Video Extension Cable with Disconnects
Finally, a solution for difficult monitor installation problems. This fully DDC-compliant assembly features super thin cable and two HD15 male connectors that disconnect, allowing you to run the cable through arm assemblies, conduit in walls, or umbilicals on ASI carts. Makes an ideal way to remote mount your monitor from the CPU. Disconnected diameter is .65” and will fit in .75” conduit.
Accessory Brackets
Universal brackets are an ideal attachment system for ASI’s rail system and holder bars. Universal mounts provide a four-finger spring metal clamping design to gently, but firmly, grip accessory items. The 4” size fits file caddies, storage tubs, and sharps containers. The 9” size fits many glove box brands.
90-BU02
Universal Bracket
- 4” single bar mount
90-BU03
Universal Bracket, Storage Tub with Clear Lid
- 4” with storage tub and single block bar mount
90-BU06
Universal Bracket, Sharps, Bar Mount, 4”
- 4” universal bar mount with sharps container

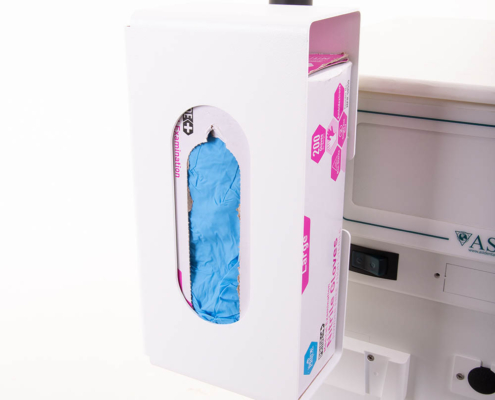

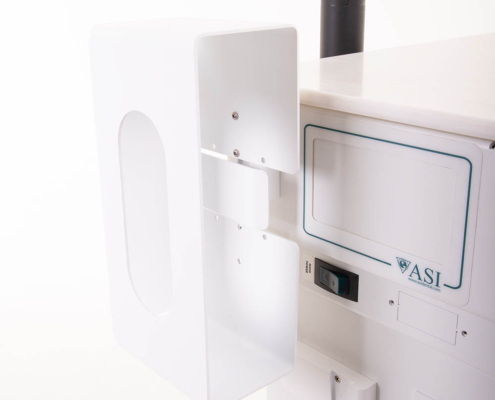

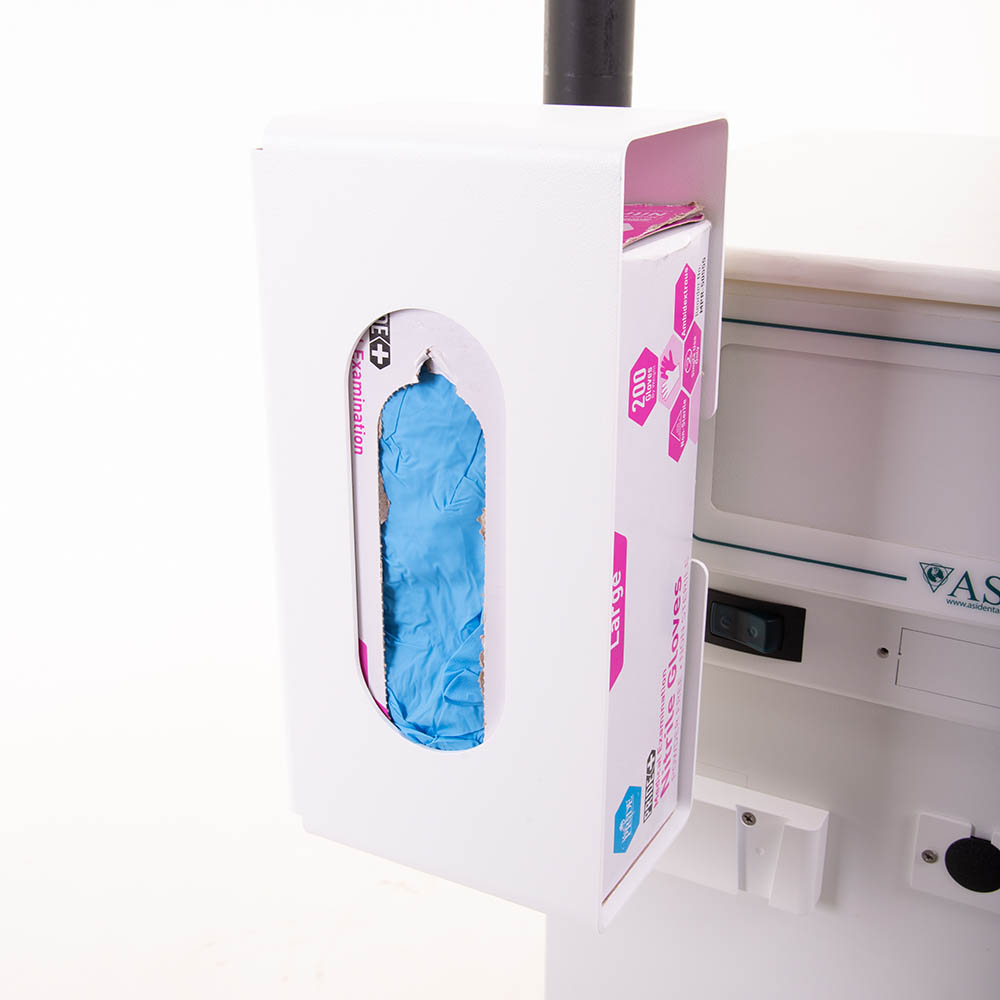

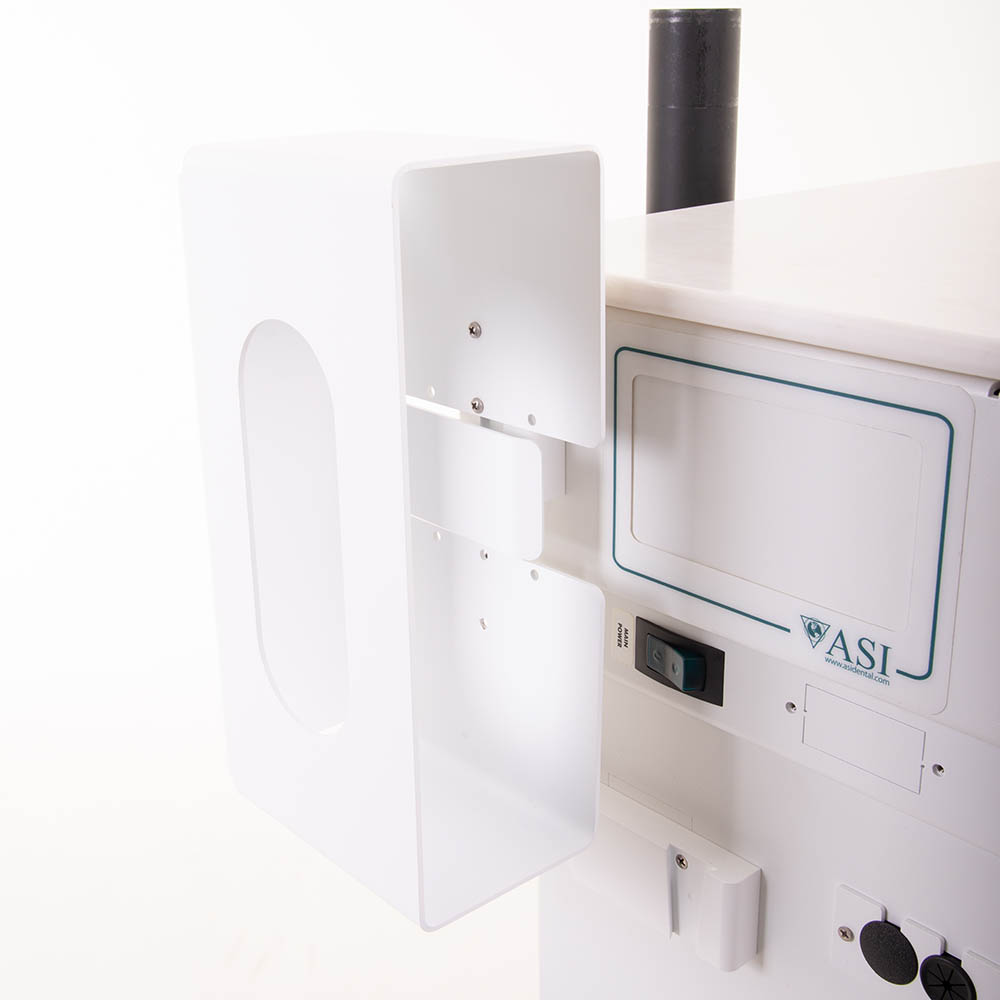

90-BU12
Glove Box Bracket, 9”
- Aluminum design, accommodates small to large boxes
90-BU05
Universal Z-Bracket with Articulation, 4”
- 4” Z-bracket with articulation
90-BU04
Universal Bracket with Articulation, 4”
- 4” holder bar with articulation
90-BU10
Bottle Bracket, 5”
- Bar-mounted, fits disinfecting wipes
90-BU09
Bottle Bracket, 3”
- Bar-mounted, fits common aerosol cans
90-2815
Debris Container
90-BU11

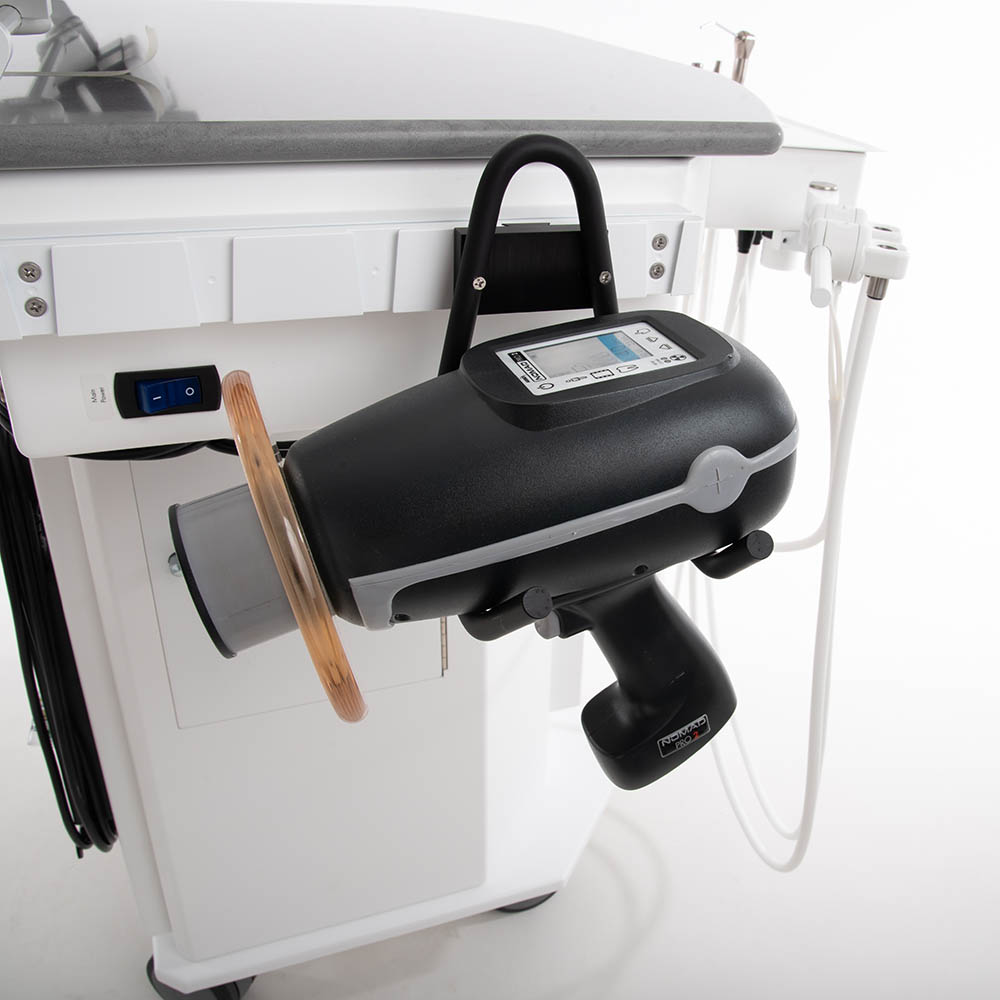

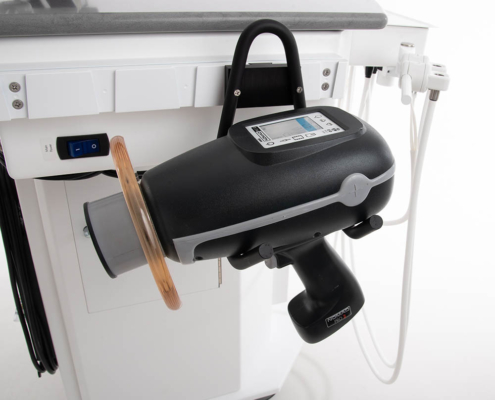

Bracket Nomad Cordless X-ray
90-BU13
iPod Bracket Mounting
90-BU14
Glove Box Holder Bracket
90-2814
Holder Bar, Cabinet Mount
90-2821
Lock-out Plug Option, Handpiece Lever Replacement
Miscellaneous Brackets
Miscellaneous brackets can be used for a variety of accessories and mounting methods.
90-2739
Foot Control Bracket
- Mounts to cart system; holds foot control when not in use
90-BW01
Waste Bin Bracket
90-2825
Heavy-duty Handles
- set of 2
90-2792
Foot Control Sleeve
- Mounts to cart system; sleeve is now included on new Triton™ systems
90-BP01
Flat Plate Bracket
- Mounted on a single block
90-BP02
Z-Bracket
- Mounted on a single block
90-BP03
Z-Bracket
- Mounted under the worktop
90-BE01
Enclosure Bracket
- Mounted on a single mounting block
90-BP07
Accessory Shelf
90-BR01
Single Rail with Offset Brackets
90-BR02
Double Stack Rail System with Offset Brackets
90-BR03
Saline Hanger, Rise Mounted
90-2797
Cord Wrap Brackets
- Set of two
Casters
About Wheel Sizes. Smaller casters with a 2-1/2” diameter were used starting with the shorter versions of self-contained system in the later 1990s. December 1, 2006, the Triton series units began using larger 3” casters. The Classic Series systems began using the 3” casters in June of 2007.
About Caster Plate Sizes. The caster plates for the 2-1/2” size used a smaller mounting plate of 1” x 1”. The 3” casters changed to a larger mounting plate size of 1-5/8” x 2”. The Ergo V’s system used the small mounting plate for all shipments.
90-2708
Upgrade 3” Casters to 4” Casters
90-2708L
Upgrade 3” Casters to 4” Locking Casters
90-2810
Upgrade 3” Casters to 5” Casters
90-2810L
Upgrade 3” Casters to 5” Locking Casters
Utilities

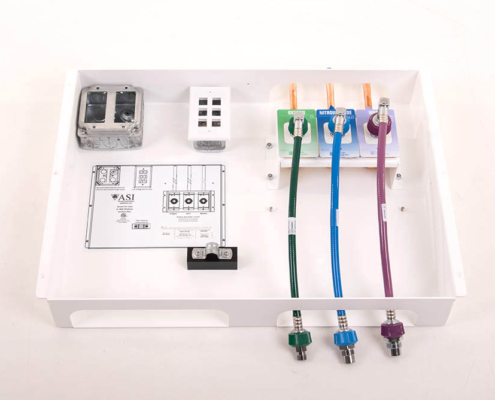

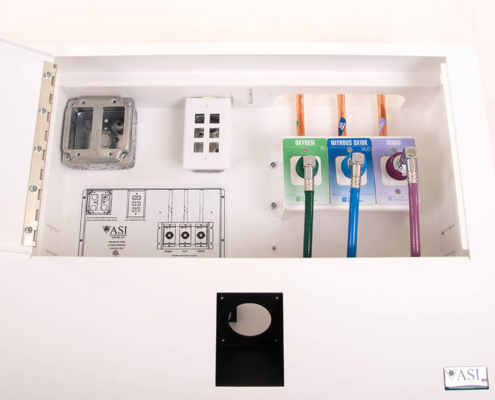

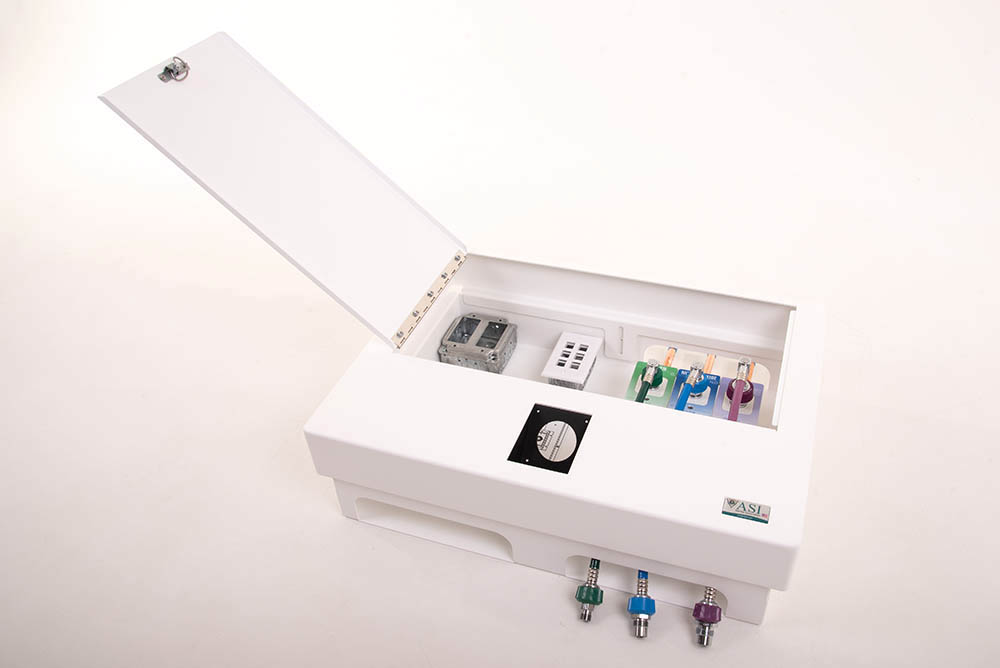

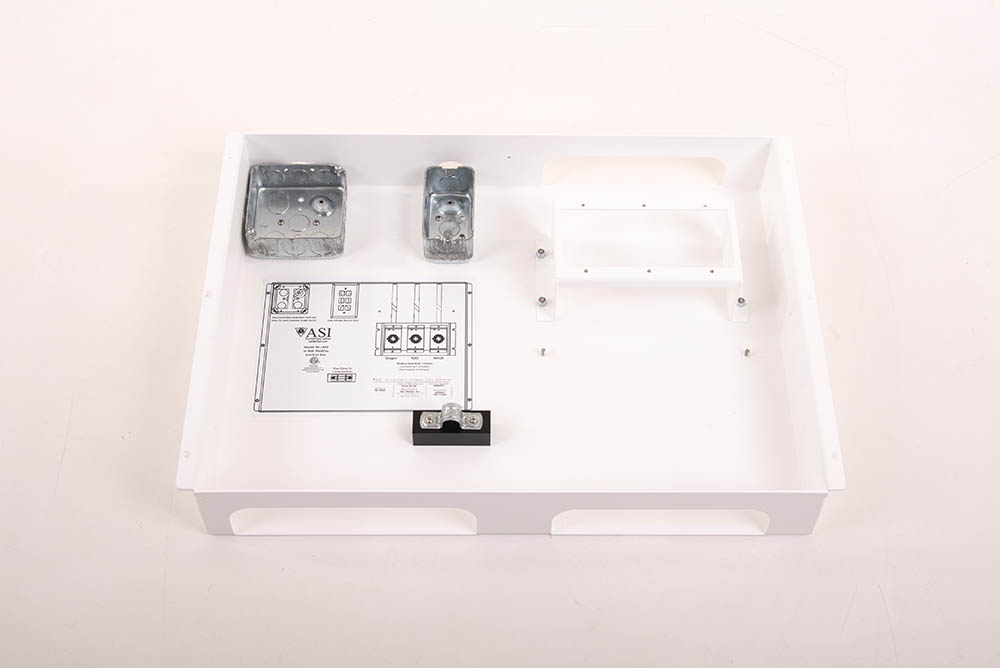

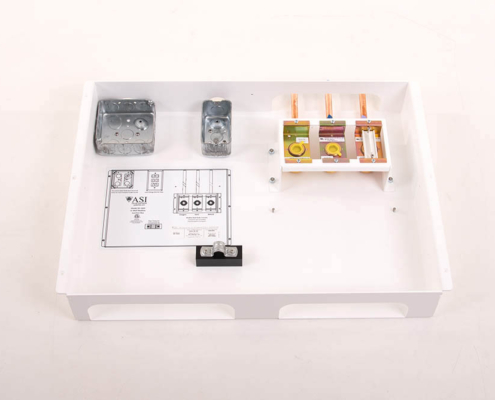

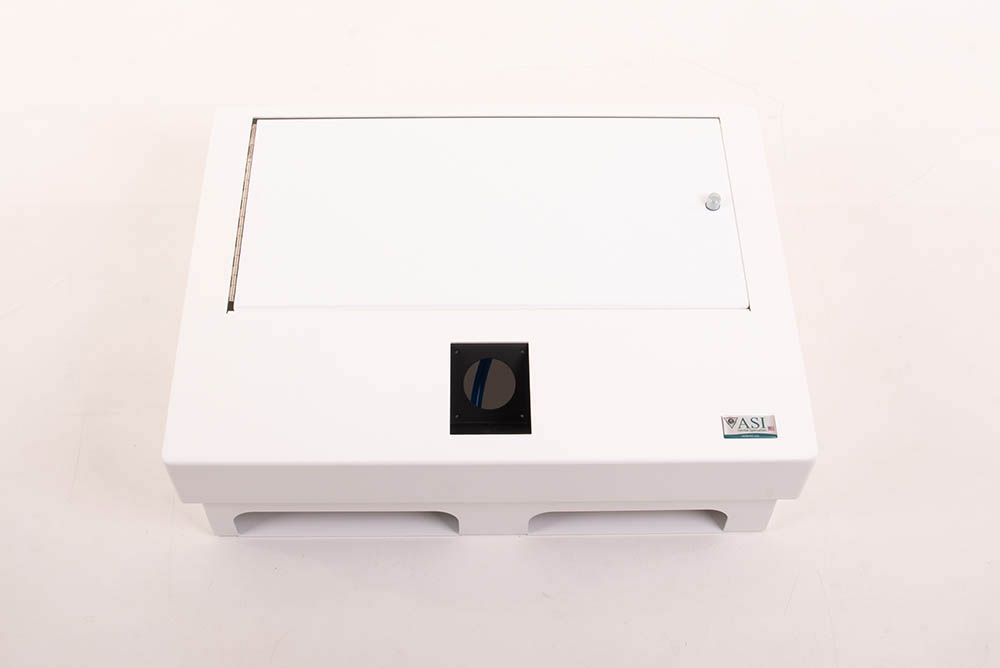

90-1818

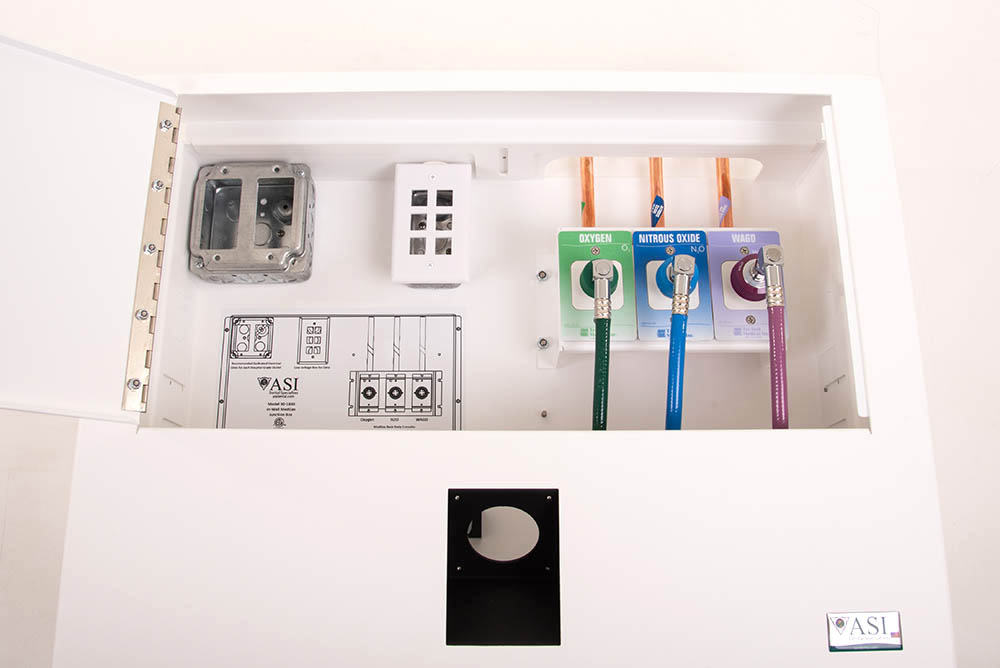

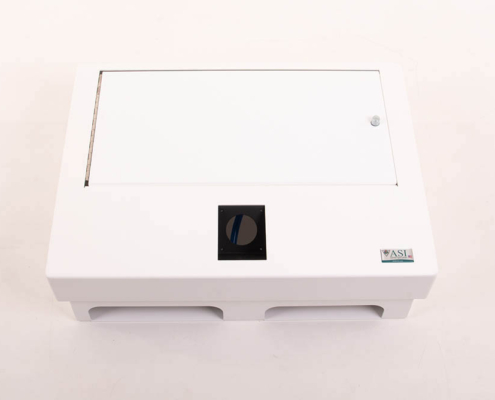

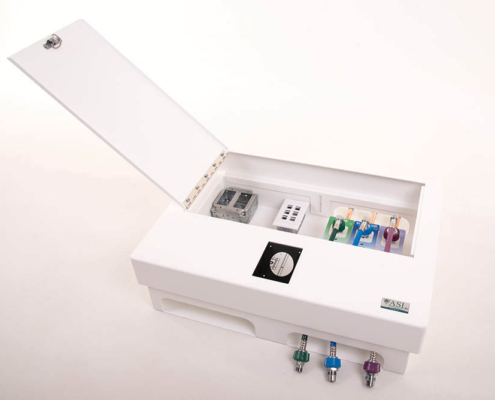

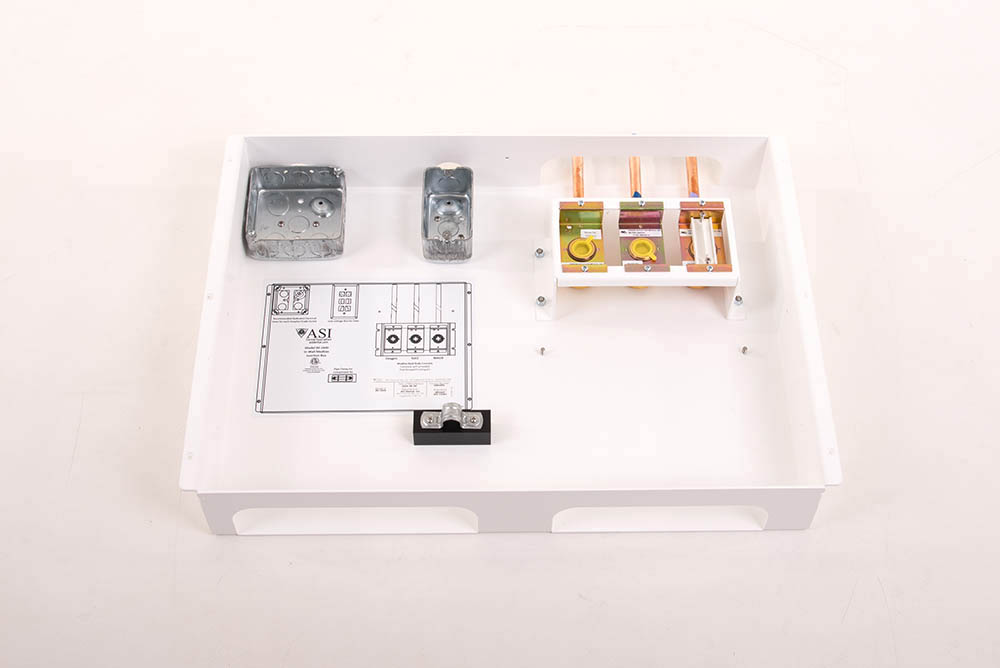

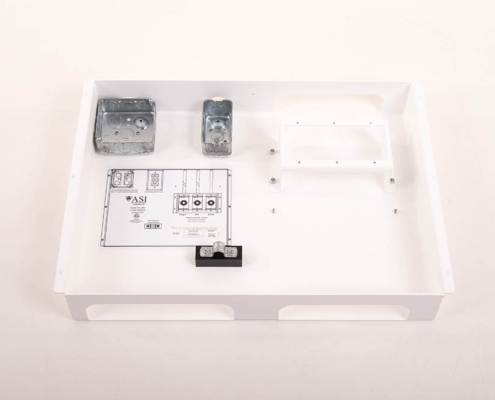

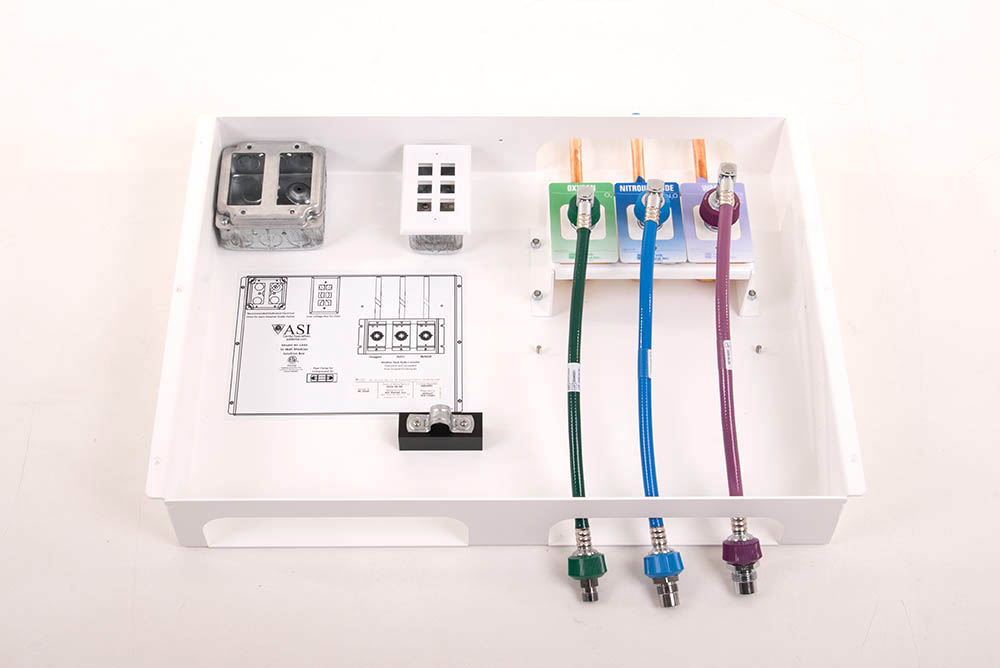

Junction Box, In-Wall
- Two-piece set conceals utility connections (air, suction, IT, etc.) in the wall. Includes qual electrical outlet box and separate enclosure for IT. Does not include air or water supply.
90-1826
Junction Box, Floor
- Floor box for front of chair base conceals utility connections (air, suction, IT, etc.) in the wall
90-1835
Junction Box, In-Floor
- In-Floor box for front of chair base conceals utility connections (air, suction, IT, etc.)
90-2796
Air Supply Connection
90-2776
Under Floor Foot-Control Tubing Option
- Foot-control tubing installed through umbilical with additional 20-feet to run under floor. Maximum length not to exceed 20-feet. Includes quick exhaust valve for foot control.
90-2769
Umbilical Suction Quick Disconnect Kit
- Kit contains 1/2” mail pipe thread to 5/8” inner diameter hose and plug for vacuum line when not in use.

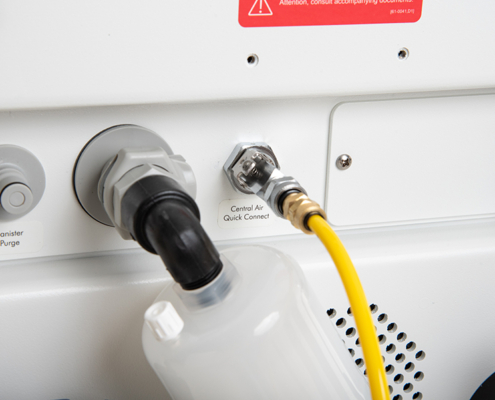

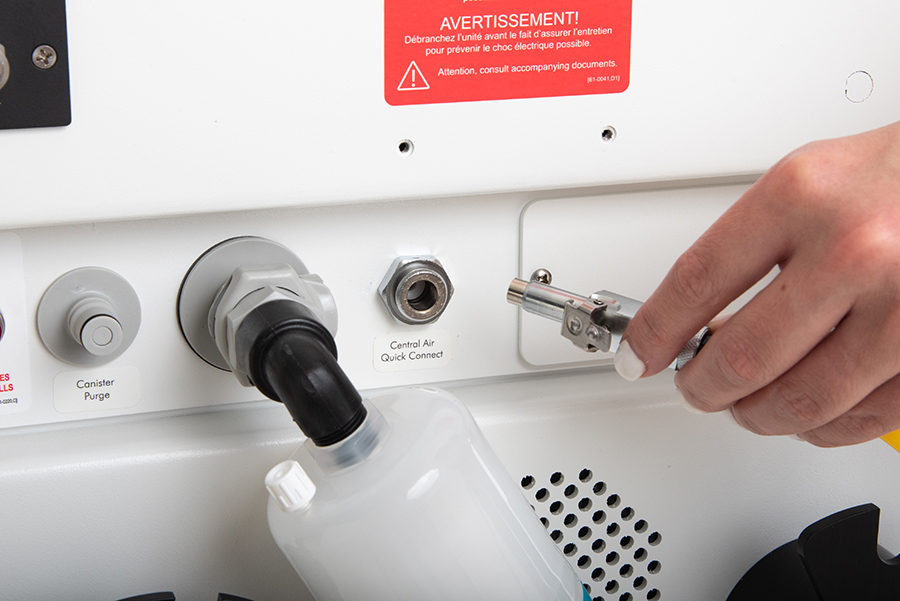

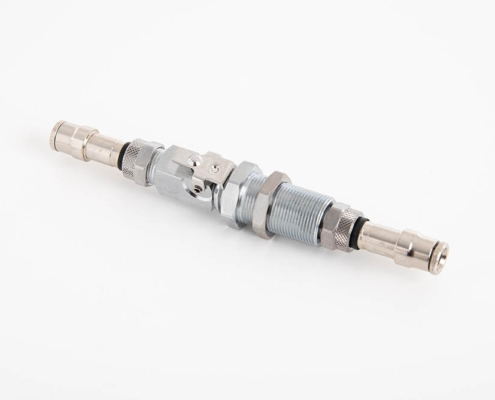

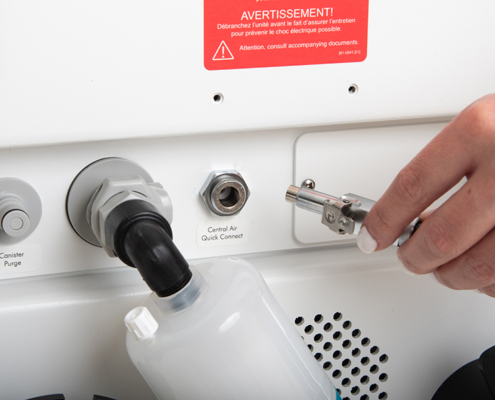

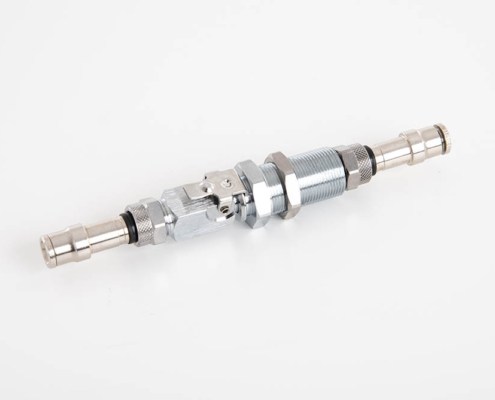

90-2744

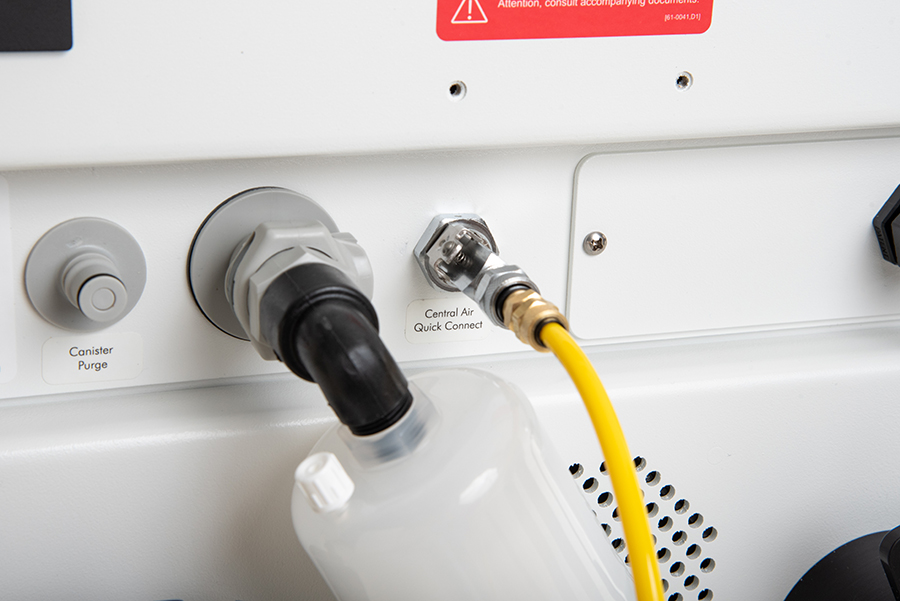

Umbilical Air Line Quick Connect
- 3/8” quick-connect set for end of umbilical air line
90-2749
Chip Air Button on Foot Control
90-9705
15-Foot Umbilical
90-9706
15-Foot Umbilical with Suction
90-1214
Integrate Customer Supplied Chair Control Keypad
- Customer must supply touch keypad and cable that connects to chair pad.
90-9776
City Water Selector Switch and Master Air Valve
- Includes two master shut-off valves for water, selector valves for bottle/city selection and master shut-off switch.
