Electric Motors & Instrument Integration
Browse our selection below of Electric Motors and Instruments to integrate into your ASI Dental System.
Electric High/Low W&HElectric High/Low KaVoElectric High/Low Bien AirElectric High/Low NSKElectric RotaryApex LocatorsUltrasonicsObturationFiber Optics / Misc. Instruments
W&H – Electric High-Low Speed Motors
A number of W&H electric high/low speed motors may be integrated into the ASI dental delivery systems. These motors function similarly to air driven high speed connections, providing water spray, fiber optic illumination and chip air. The motors operate universal E style handpiece connections geared to provide equivalent speeds to high speed handpieces, but with additional torque that prevents stalling. The motors can be equipped with 1:1 ratios or reduction ratios to allow them to operate like a lowspeed handpiece. Due to their quiet operation, additional cutting torque and adjustability, many dentists find it very useful to include two motors on the delivery system. One motor is utilized as a high speed and the second as a low speed.
90-5171
W&H Advanced Micro Motor System – Digital Display
Electric High/Low Speed Motor system. Includes one EM-12L Motor with optional wireless foot control operation. Digital display allows full function for full restorative and endodontic rotary functions with five programmable settings for torgue control. Can be used with up to total of four motors.
90-5172
W&H Additional Micro Motor and Tubing
Adds one additional EM-12L Motor and tubing to integrated system.
90-5173
W&H Additional Surgical Motor and Tubing
Adds surgical motor capability to integrated system. Includes autoclavable motor, tubing with disconnect for sterillization. Includes removable holder.
90-5175
External Saline Irrigation Pump
90-5170
W&H Micro Motor System – Analog
Electric High/Low Speed Motor system with analog speed control knob. Includes one EM-12L Motor that accepts all E style contra angle handpieces.
90-5174
W&H Wireless Foot Control Upgrade
Includes control system for W&H and other handpieces in the cart along with wireless receiver.
W&H Handpieces
92-WH30007000
W&H 1:5 Red Contra Angle w/Light WG-99LT
High Speed – Burs up to 200,000 rpm
92-WH30009000
W&H 1:1 Blue Contra Angle w/Light WG-56LT
Low Speed – Burs for Restorative
92-WH30013000
W&H 1:1 Blue Contra Angle w/o Light HG-43A
Low Speed – Burs for Restorative
92-WH12227501
W&H Endo Contra Angle 16:1 EB-75
Rotary Endodontic Files
92-WH12227901
W&H Endo Contra Angle 2:1 EB-79
Low Speed – Gates and Flaring Files
92-WH30033000
W&H Surgical Handpiece 20:1 WS-75L
Surgical with External Irrigation Spray
92-WH30058000
W&H Surgical Handpiece 1:1 S-11L
Surgical with External Irrigation Spray
92-WH30049000
W&H Surgical Handpiece 1:2.7 WS-91L
Surgical with External Irrigation Spray
92-WH30411000
W&H Surgical Handpiece 1:2 S-16
92-WH30418000
W&H Red Contra Angle 1:4 WK-900LT
Contra-angle handpiece 1:4, 3-fold spray, head size Ø 10,7 mm, press-button chuck system, for FG burs Ø 1,6 mm, compact glass rod

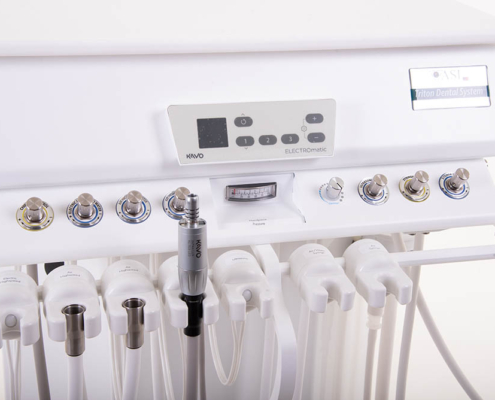

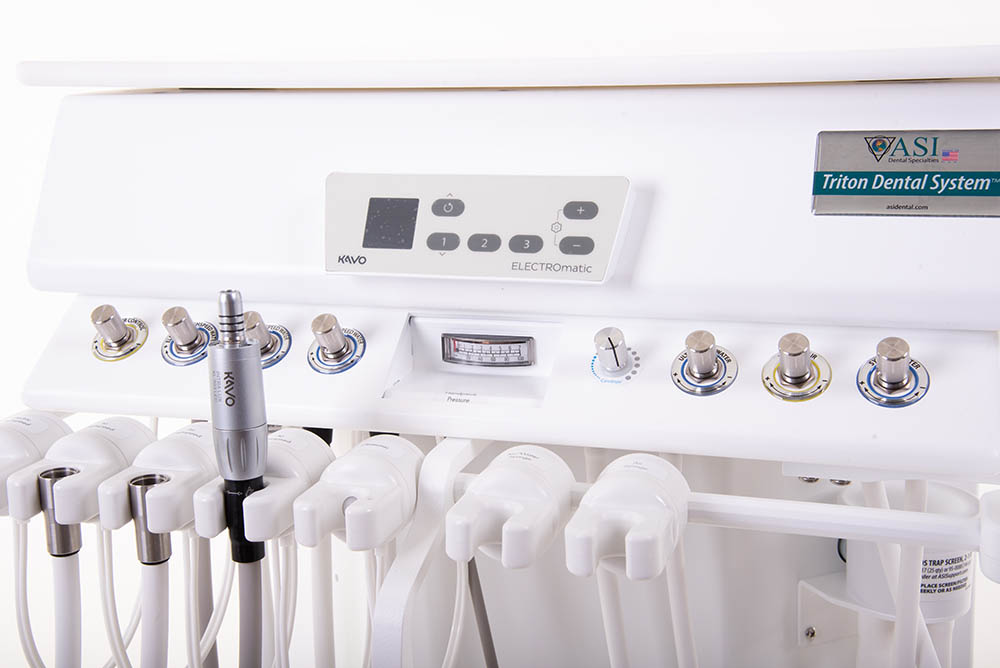

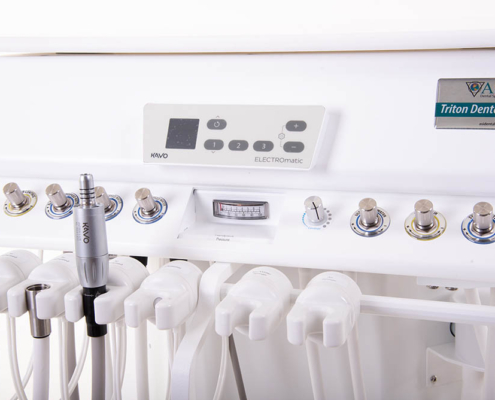

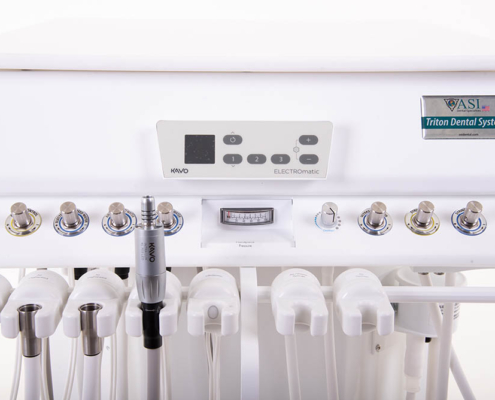

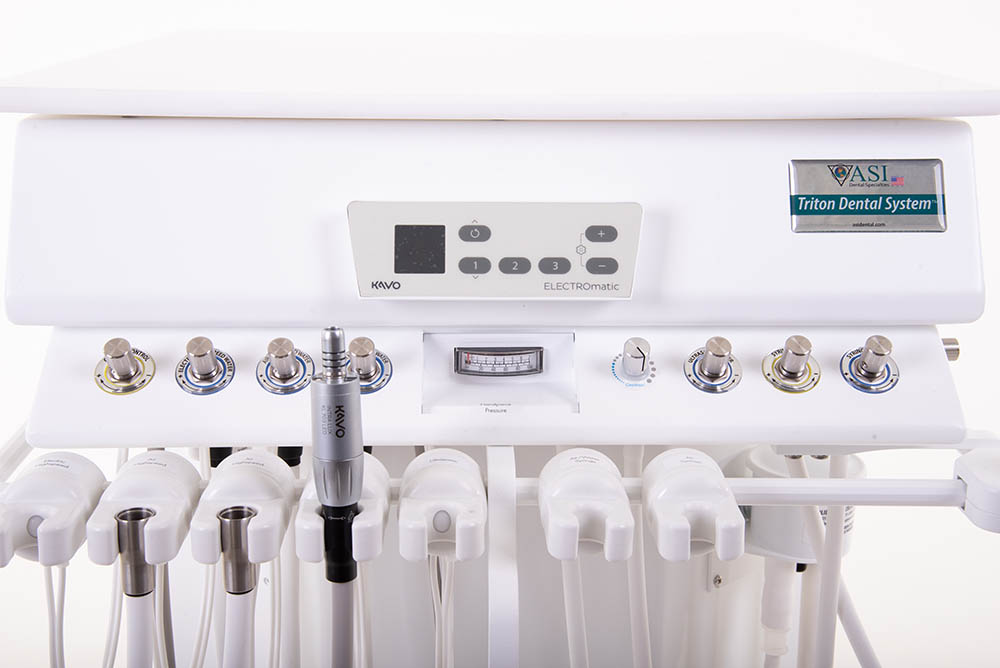

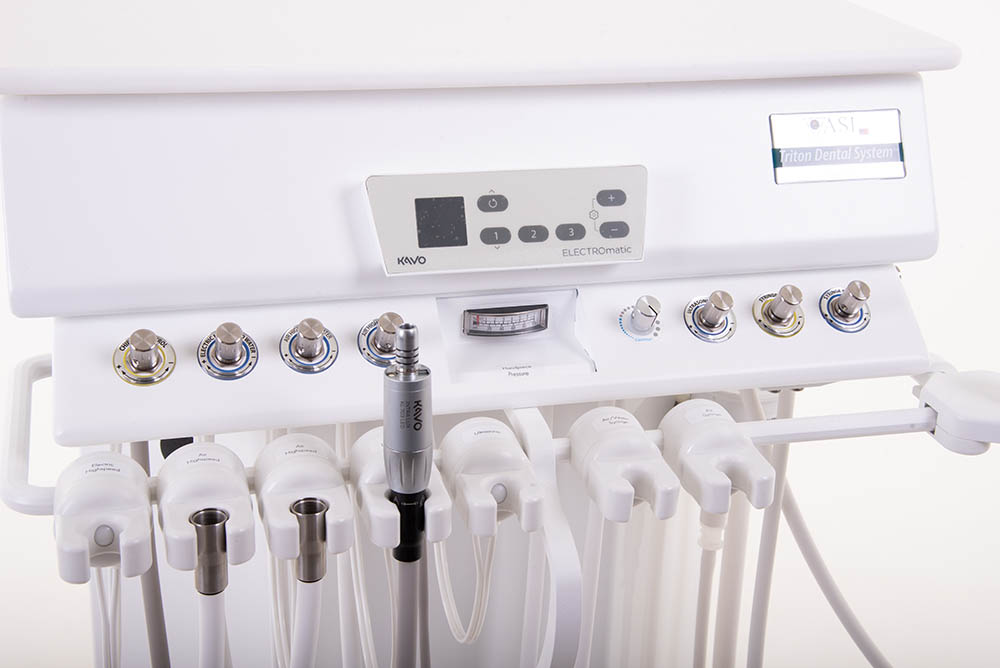

KaVo – Electric High-Low Speed Motors
A number of KaVo electric high/low speed motors may be integrated into the ASI dental delivery systems. These motors function similarly to air driven high speed connections, providing water spray, fiber optic illumination and chip air. The motors operate universal E style handpiece connections geared to provide equivalent speeds to high speed handpieces, but with additional torque that prevents stalling. The motors can be equipped with 1:1 ratios or reduction ratios to allow them to operate like a lowspeed handpiece. Due to their quiet operation, additional cutting torque and adjustability, many dentists find it very useful to include two motors on the delivery system. One motor is utilized as a high speed and the second as a low speed.

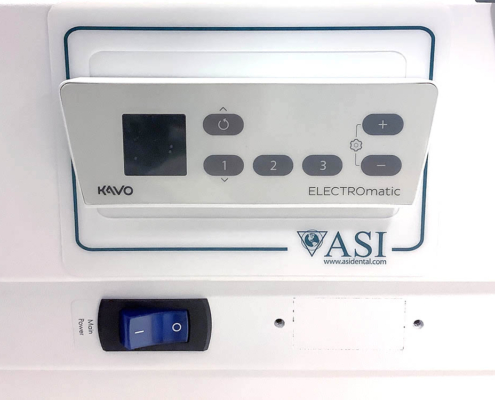

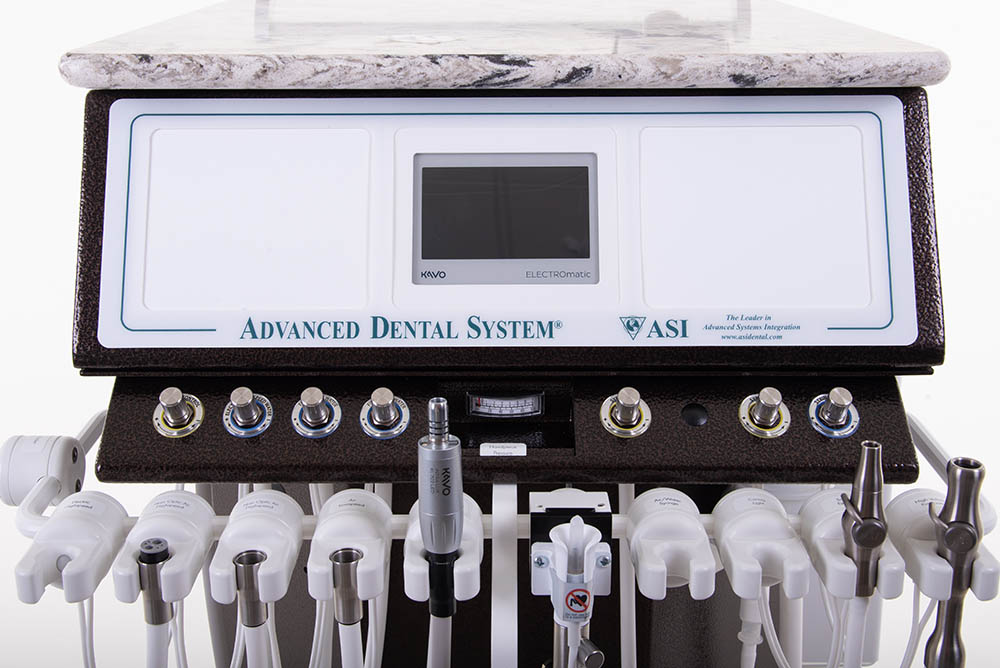

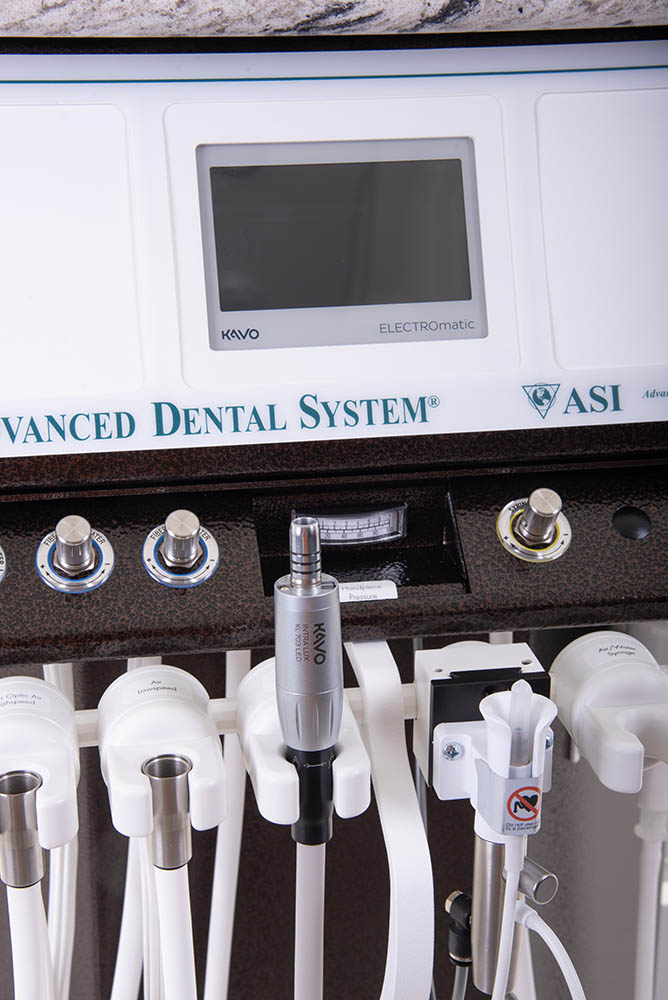

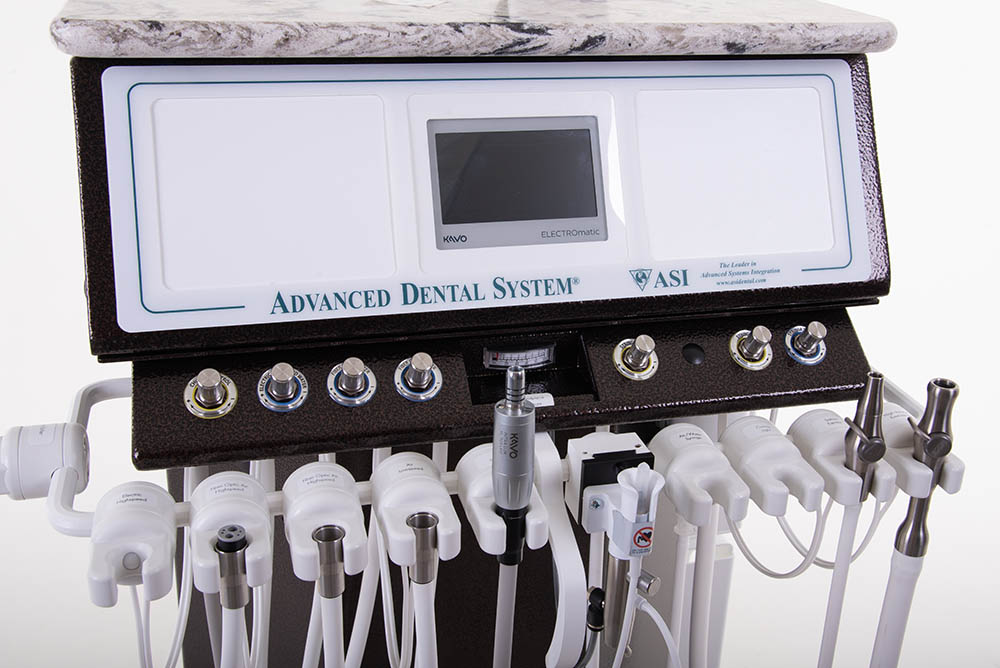

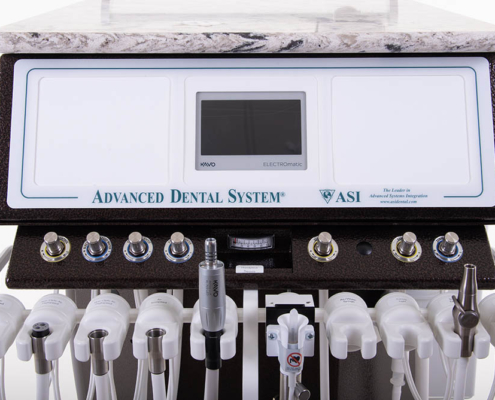

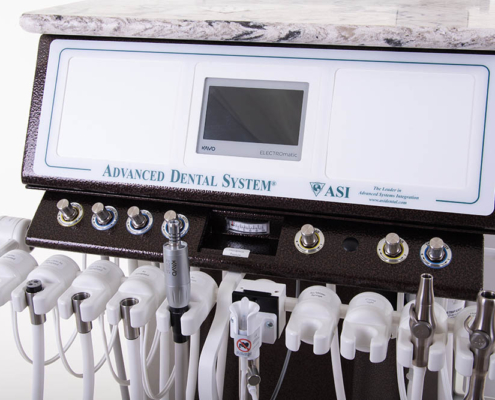

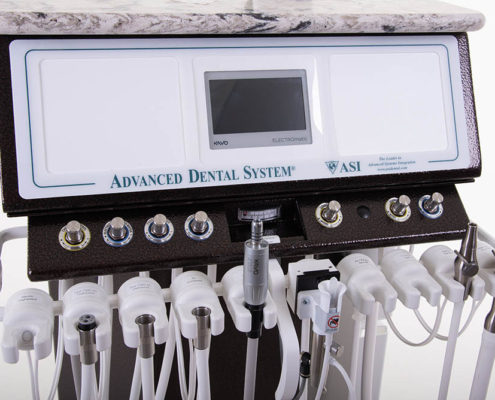

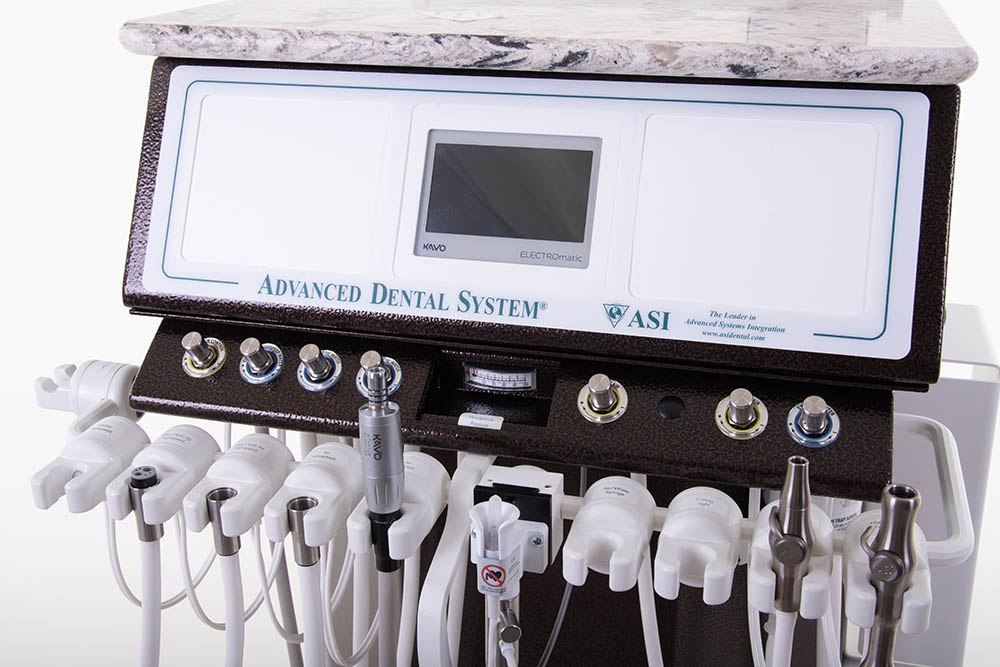

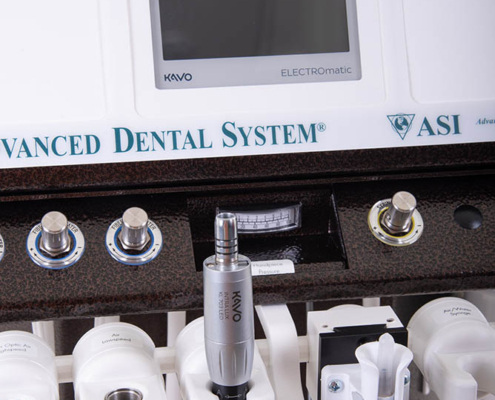

90-5274

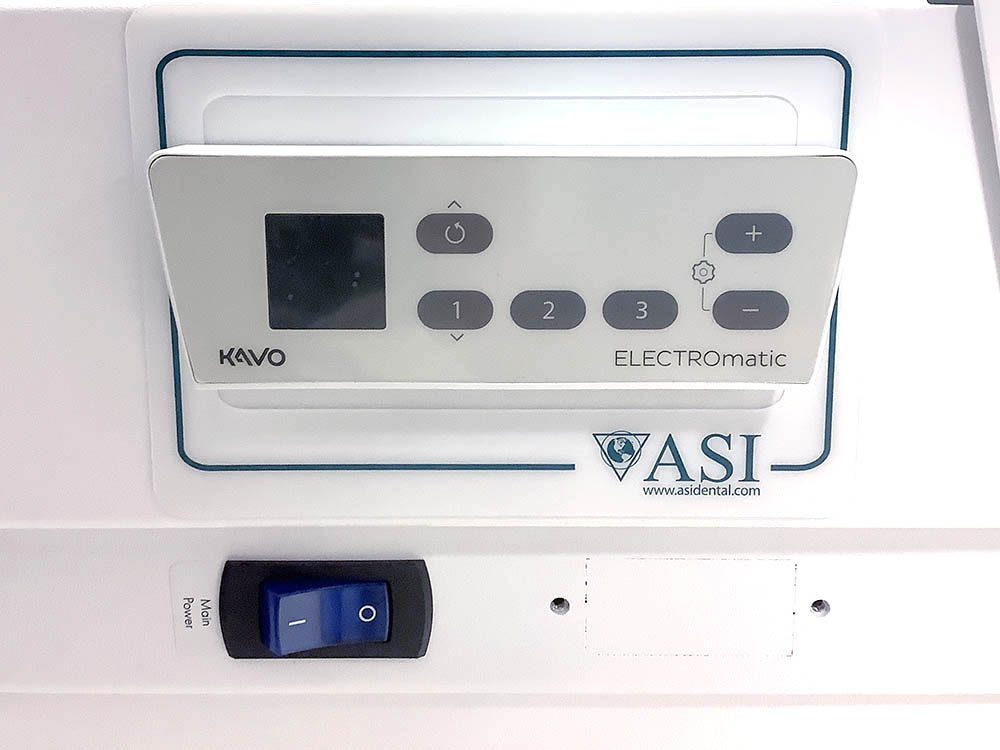

KaVo ELECTROmatic Premium, Single Motor, Triton Mount
90-5274D
KaVo ELECTROmatic Premium, Dual Motor, Triton Mount
90-5297
KaVo ELECTROmatic Premium, Single Motor, Full Panel (Digital)
90-5297D
KaVo ELECTROmatic Premium, Dual Motor, Full Panel (Digital)
Contra Angle KaVo Handpieces
92-KV1007.5550
KaVo EXPERTmatic E25L 1:5 Handpiece
92-KV1007.5540
KaVo EXPERTmatic E20L 1:1 Handpiece

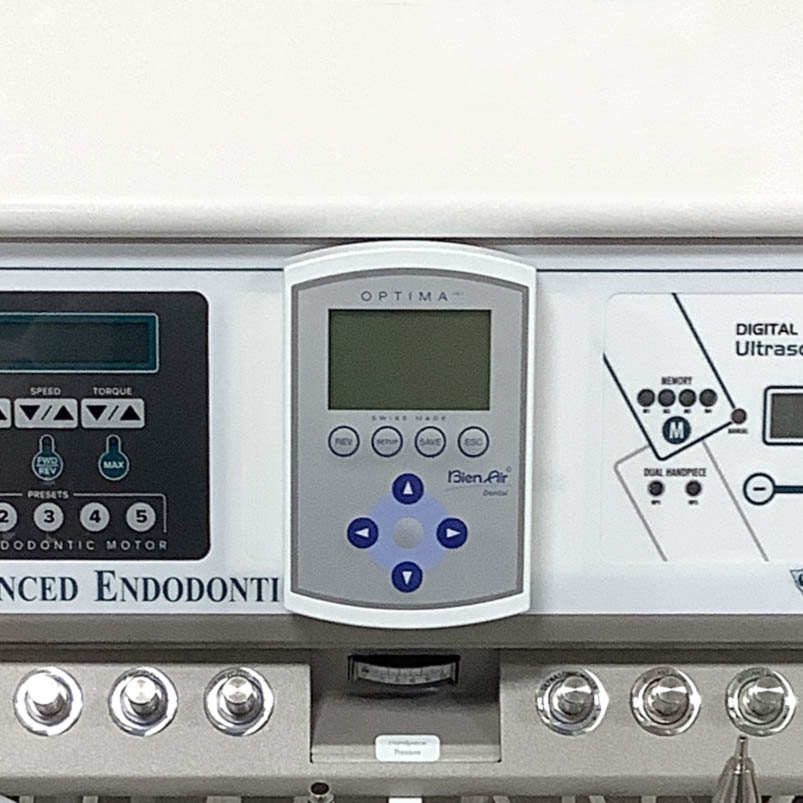

Bien Air – Electric High-Low Speed Motors
A number of Bien Air electric high/low speed motors may be integrated into the ASI dental delivery systems. These motors function similarly to air driven high speed connections, providing water spray, fiber optic illumination and chip air. The motors operate universal E style handpiece connections geared to provide equivalent speeds to high speed handpieces, but with additional torque that prevents stalling. The motors can be equipped with 1:1 ratios or reduction ratios to allow them to operate like a lowspeed handpiece. Due to their quiet operation, additional cutting torque and adjustability, many dentists find it very useful to include two motors on the delivery system. One motor is utilized as a high speed and the second as a low speed.
90-5166
Optima MCX-LED Analog Power Knob

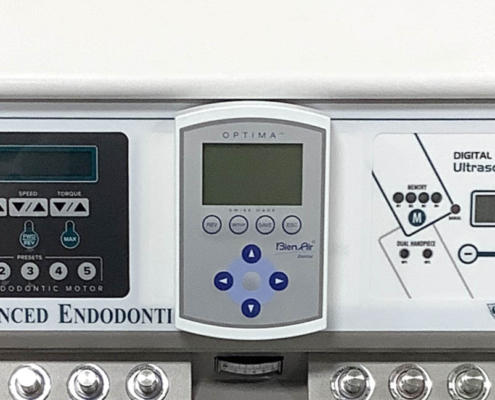

90-5167
OPTIMA MX2, Single Motor, Integrated iPad
90-5168
OPTIMA MX2, Dual Motor, Integrated iPad
90-5169
OPTIMA One MX2 & One MXI, Integrated iPad

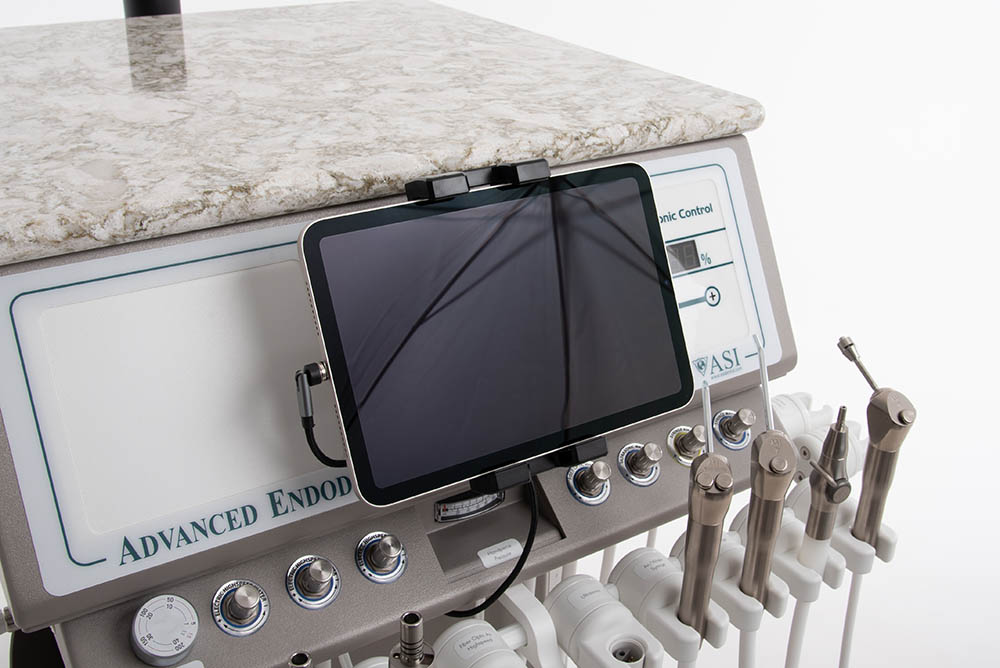

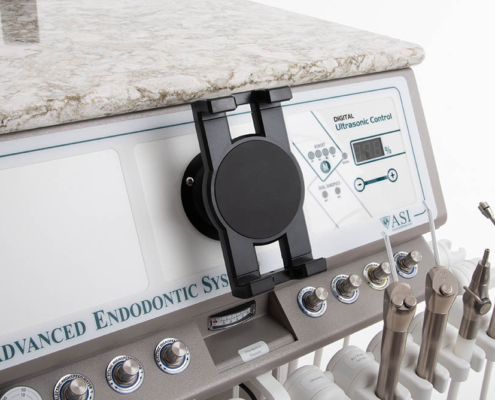

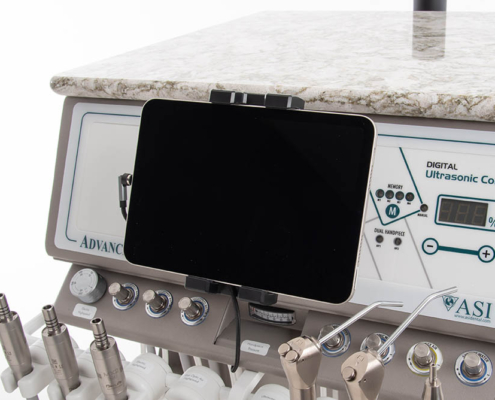

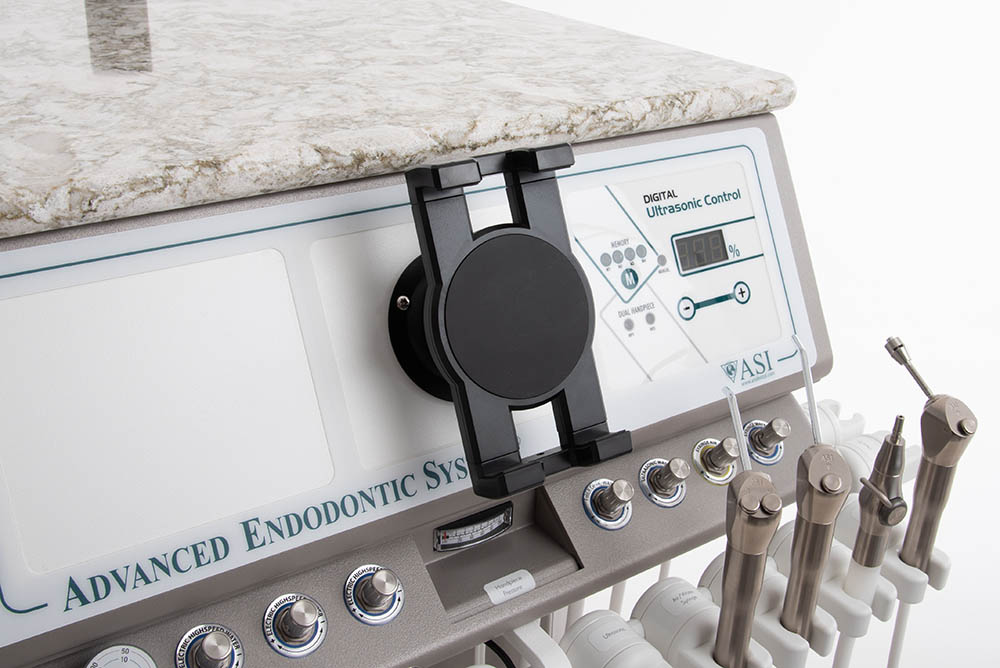

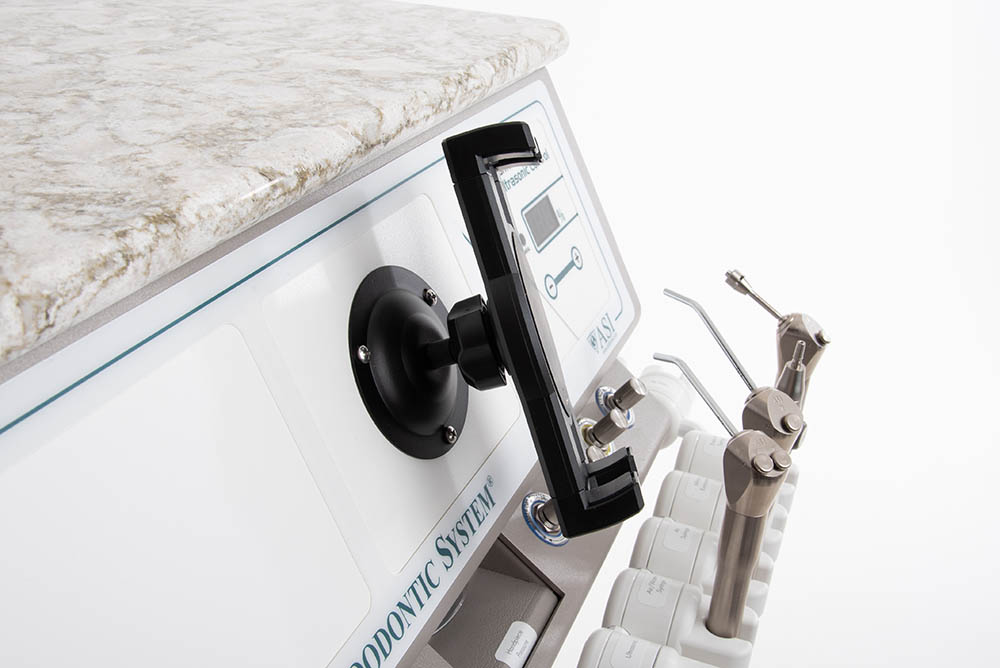

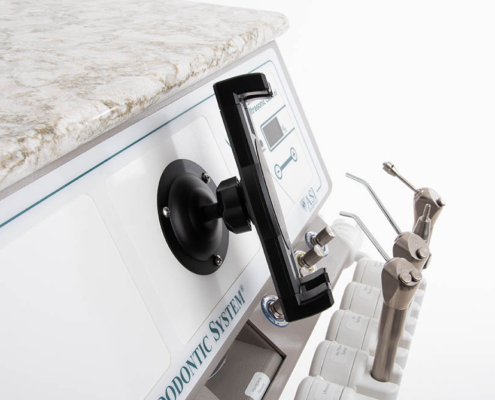

90-B007
iPad/iPod Bracket Mounting
Handpieces
92-BA1600052
Bien Air PM 1:1 EXT SPRAY- Surgical Handpiece
92-BA1600424
Bien Air Classic Contrangle 1:1 Handpiece
Contrangle handpiece with a 1:1 speed ratio. Compatible with all electric E-style motors. Requires Unifix quick-connect coupling for operation.
92-BA1600598
Bien Air Classic CA 20:1L Handpiece
NSK – Electric High-Low Speed Motors
A number of NSK electric high/low speed motors may be integrated into the ASI dental delivery systems. These motors function similarly to air driven high speed connections, providing water spray, fiber optic illumination and chip air. The motors operate universal E style handpiece connections geared to provide equivalent speeds to high speed handpieces, but with additional torque that prevents stalling. The motors can be equipped with 1:1 ratios or reduction ratios to allow them to operate like a lowspeed handpiece. Due to their quiet operation, additional cutting torque and adjustability, many dentists find it very useful to include two motors on the delivery system. One motor is utilized as a high speed and the second as a low speed.

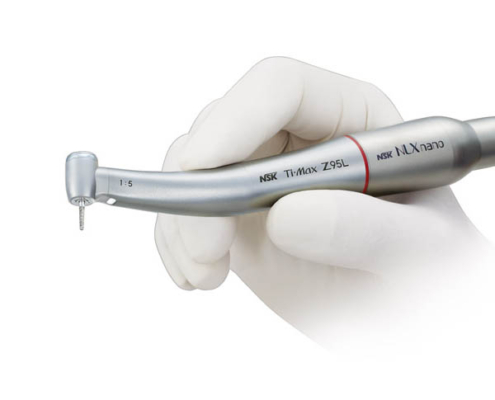

90-5292
NSK NLX Nano S120 Micromotor
Desc. High/low-speed micromotor with a speed range of 100-200,000 min-1 and 120V, for fiber optic and non-fiber optic contra angles. Includes one handpiece holder and integration with an ASI delivery system.
90-5292D
Dual NSK NLX Nano S120 Micromotors
Desc. High/low-speed micromotor with a speed range of 100-200,000 min-1 and 120V, for fiber optic and non-fiber optic contra angles. Includes two handpiece holders and integration with an ASI delivery system.

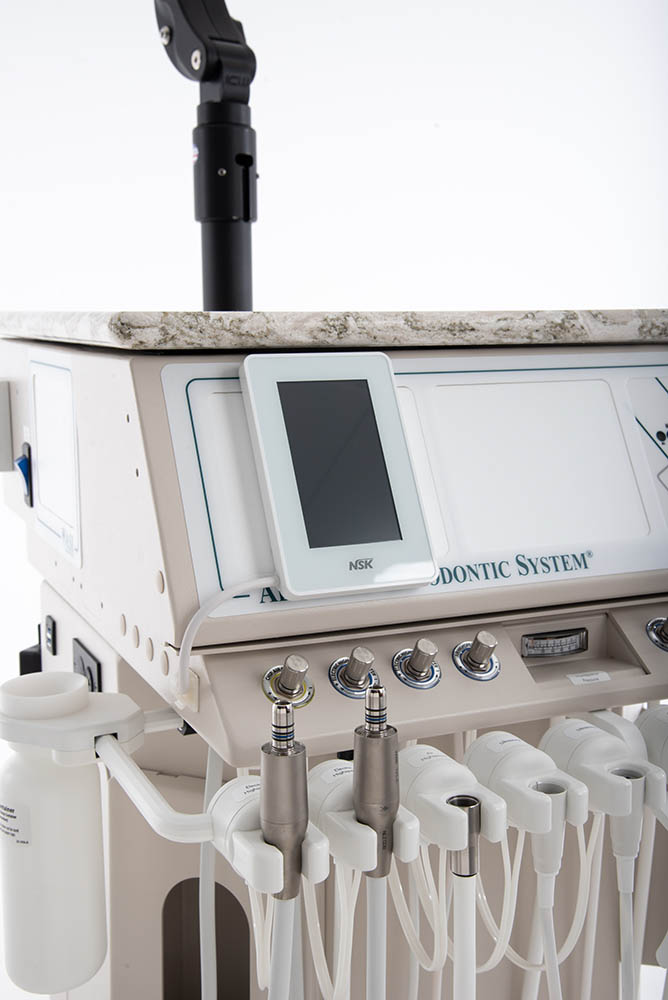

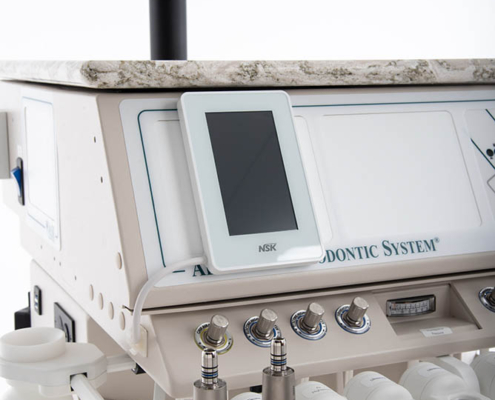

90-5372
NSK NLZ Electric High Speed Motor

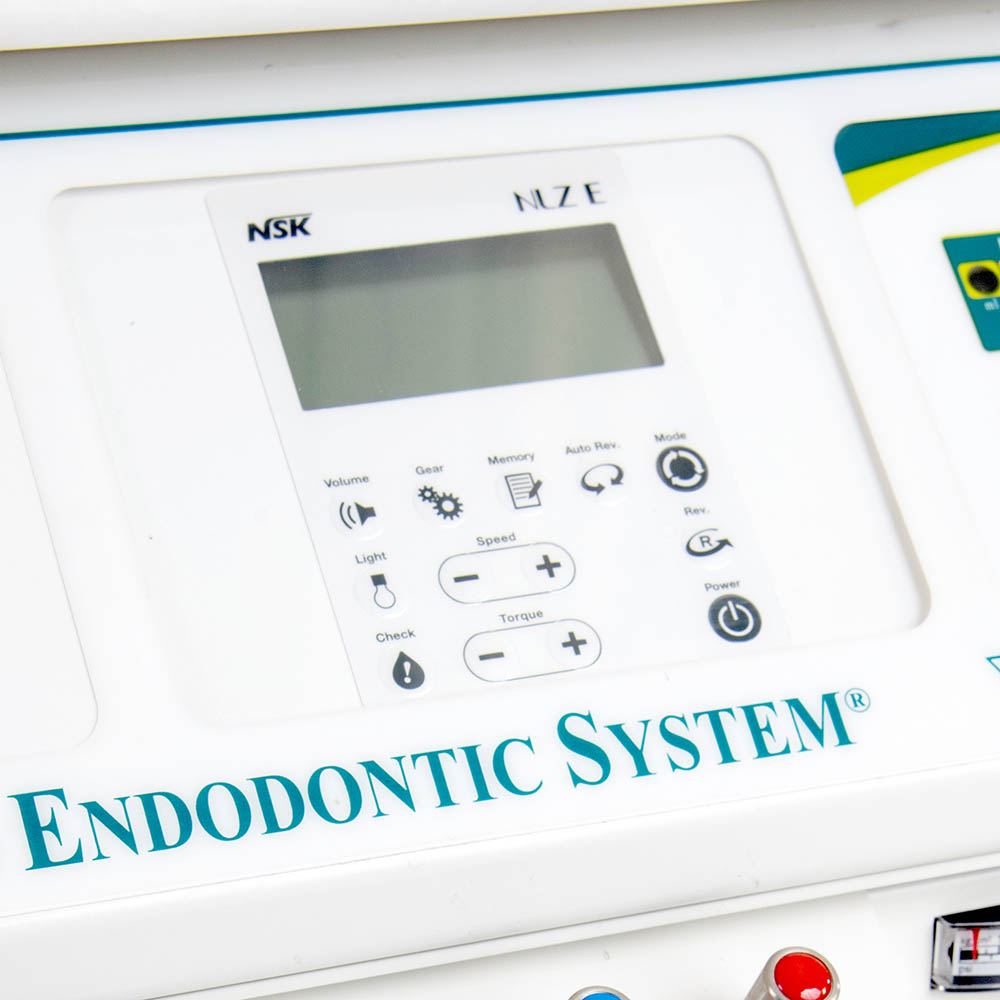

90-5373

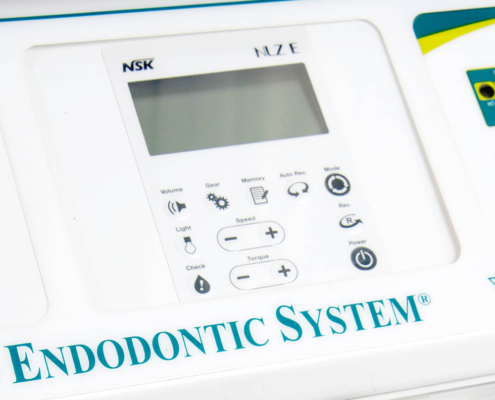

NSK NLZ-E Electric High Speed with Reciprocating Endodontic Function
Electric Rotary
Endo Rotary Motors
There are many popular endodontic rotary motors available for integration into ASI dental delivery systems. These motors are designed to operate endodontic rotary files. They include common features such as very low speed ranges and torque reverse functions.
Integration Considerations:
All models of Endodontic Rotary Motors with displays require full panel mounting for integration. They should be placed into one of the front panels to provide the best visibility and access to settings.
90-B044
Dentsply X-smart Pro+
Includes a base bracket custom fit to mount the Dentsply X-smart Pro+ console on the side of the cart so that it is aligned flush with the other control panels. Includes holder bracket with slots for probe cords.
90-5375-CP
Dentsply ProMark
90-5299
Aseptico DTC Motor, Integrated
90-5307
NSK TC2 Cordless Handpiece
90-5375-CP
Sirona X Smart, IQ, iPad Panel Mount & Holder
does not include ipad
90-5302
Kavo/Kerr Elements E-Motion, Electric Motor

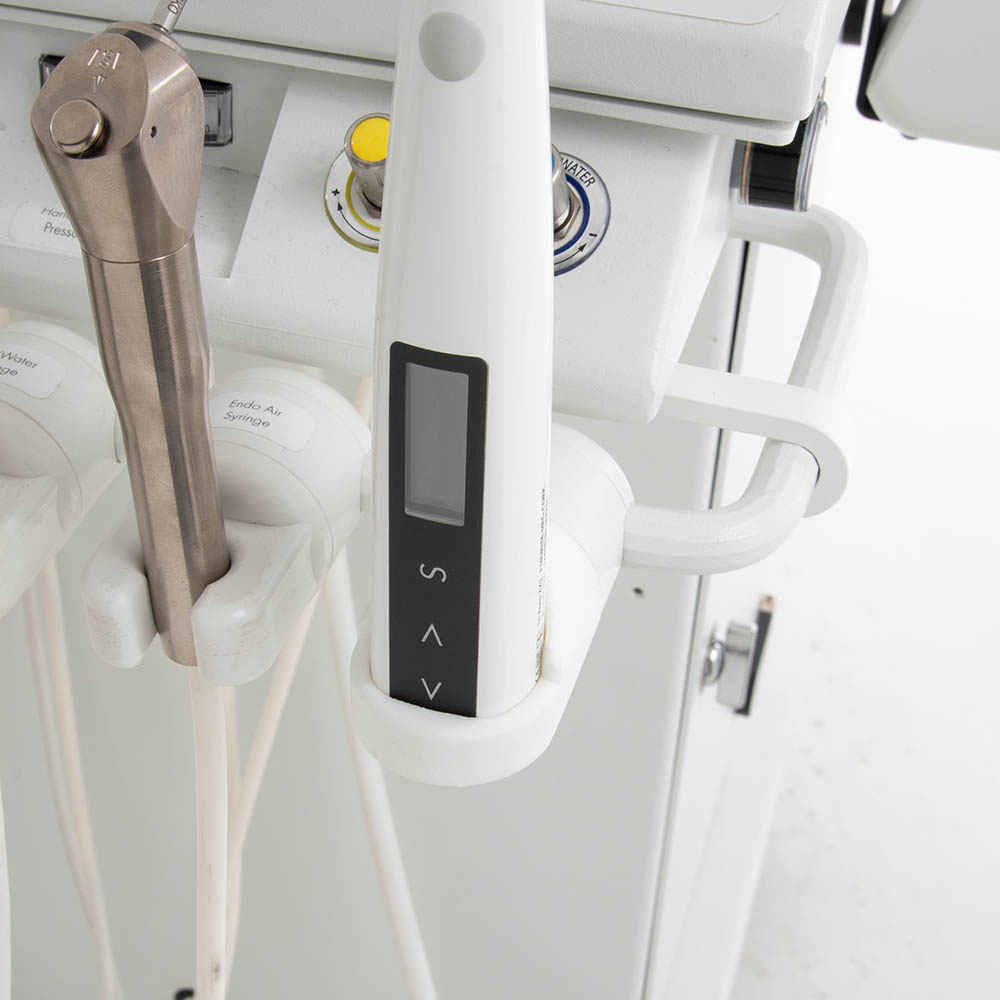

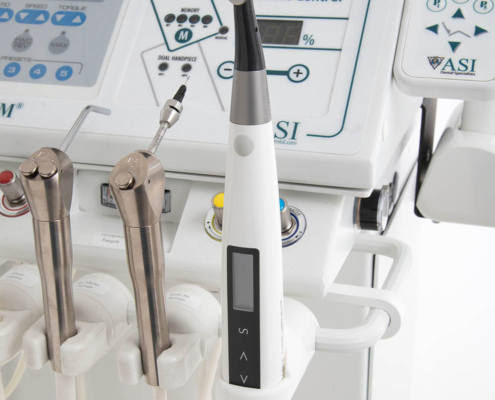

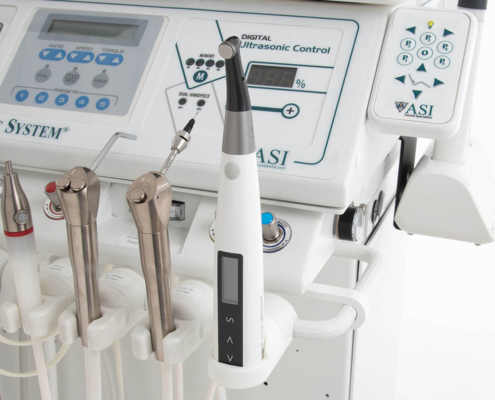

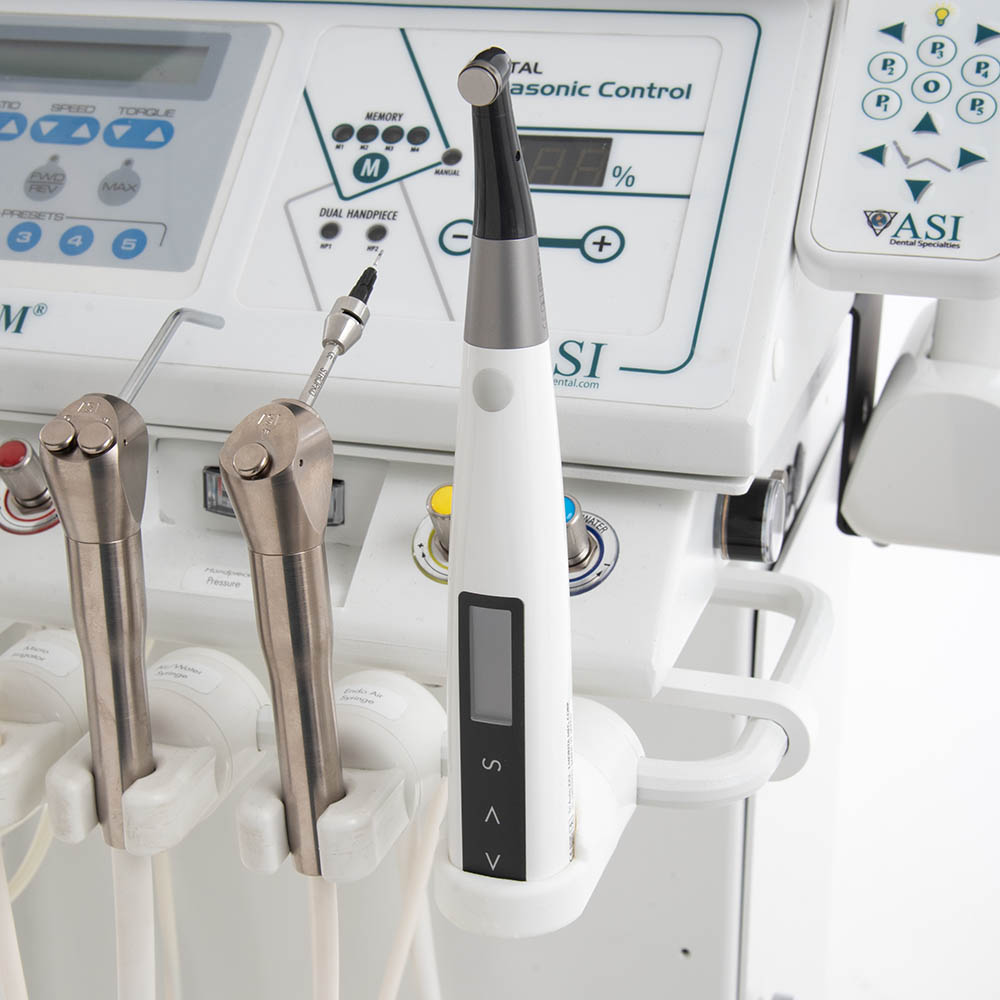

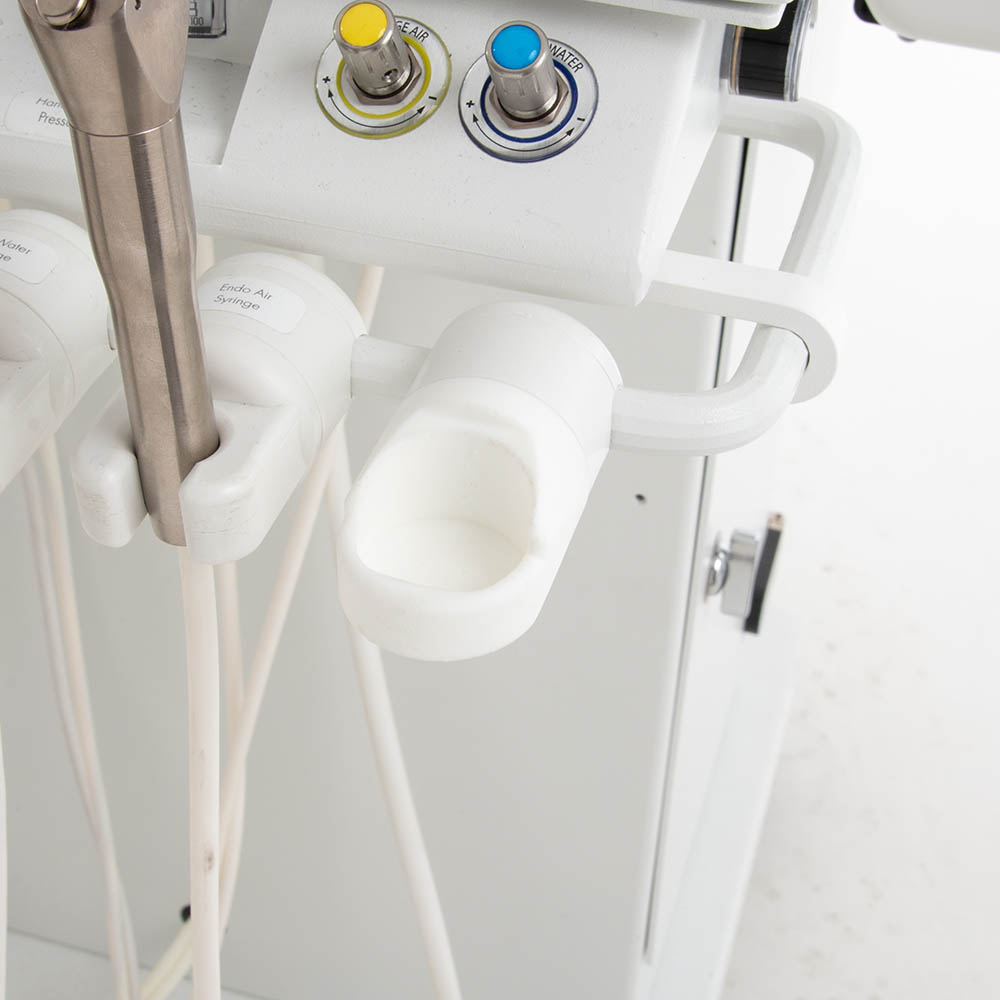

90-5200
TriAuto ZX II Cordless Handpiece
Apex Locators
Root ZX3
The J. Morita Root ZX3 provides a large easy to read screen. It features auto calibration, battery power indicator and auto power off (sleep mode) function to extend battery life. Integration of the Root ZX3 can be in either the left or right front panels. The file clip leads extend out the side of the cover. A side clip is provided for coiling and storing wire leads.
Other Models
Integration of other models of apex locators such as Denstsply ProMark Apex Locator, Brassler PAL, Sybron Elements or RootZX3 can be accomplished using a mounting bracket on the side of the cart or holder bar.

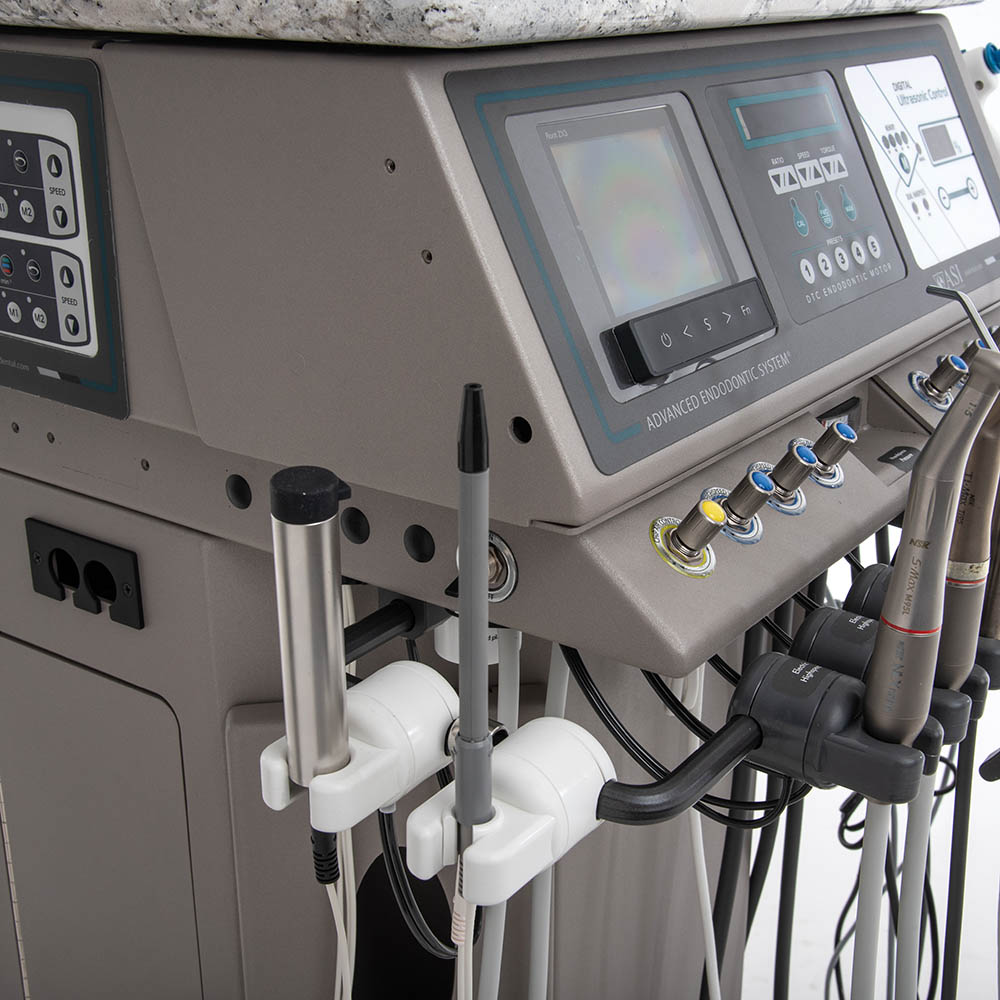

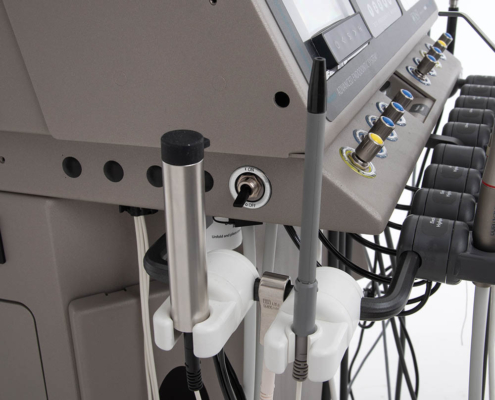

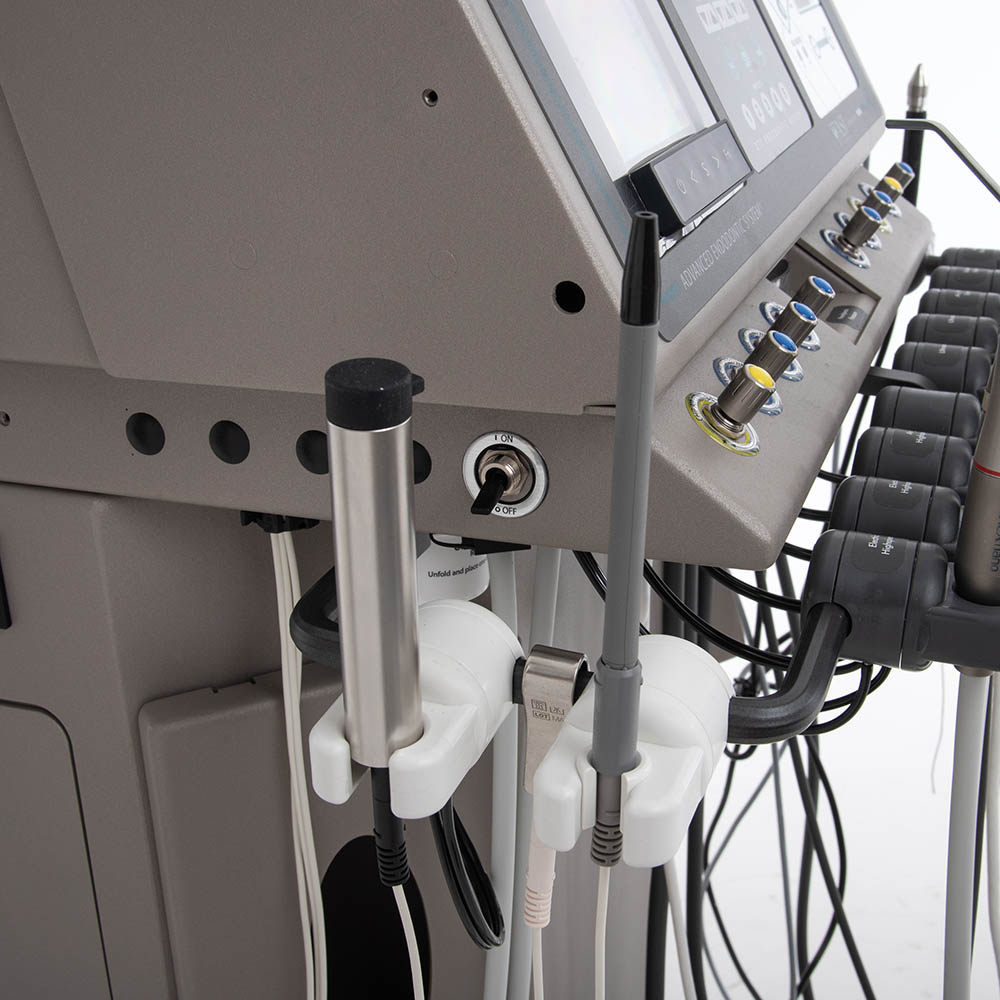

90-5765
J. Morita Root ZX3, Integrated
90-B027
Vise Bracket, Bar-Mounted
Bar mounted to side of holder bar with Z bracket and swivel vise bracket. For use on any ASI delivery system.
90-5766-BM
Morita Root ZX 3 Apex Locator, Bar-Mounted
90-B049
Vise Bracket, Cover Mounted. Mounts to the side of the control panel cover. Articulating ball joint provides infinate positioning.
90-5766-CM
J. Morita Root ZX3, Cover Mounted Swivel Vise Bracket
90-B026
Vise bracket for apex locator mounted to corner of handpiece holder bar with articulating ball joint. Clamping posts adjusts from 2″ to 4″ with a platform size of 4″

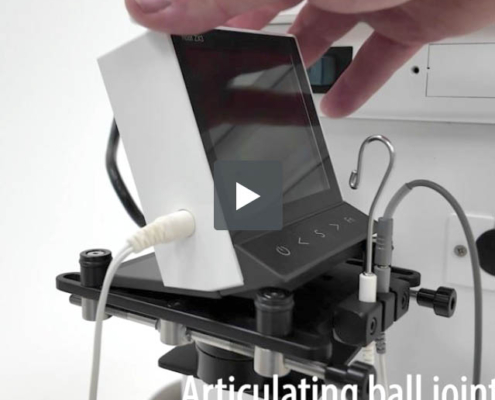

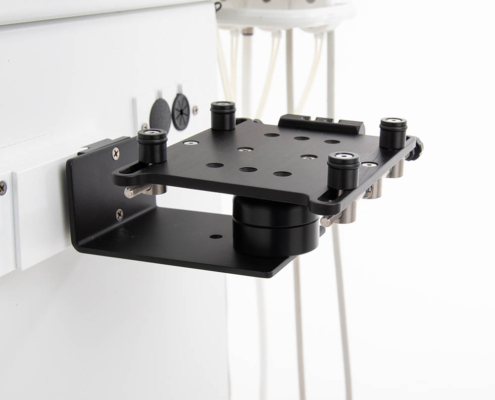

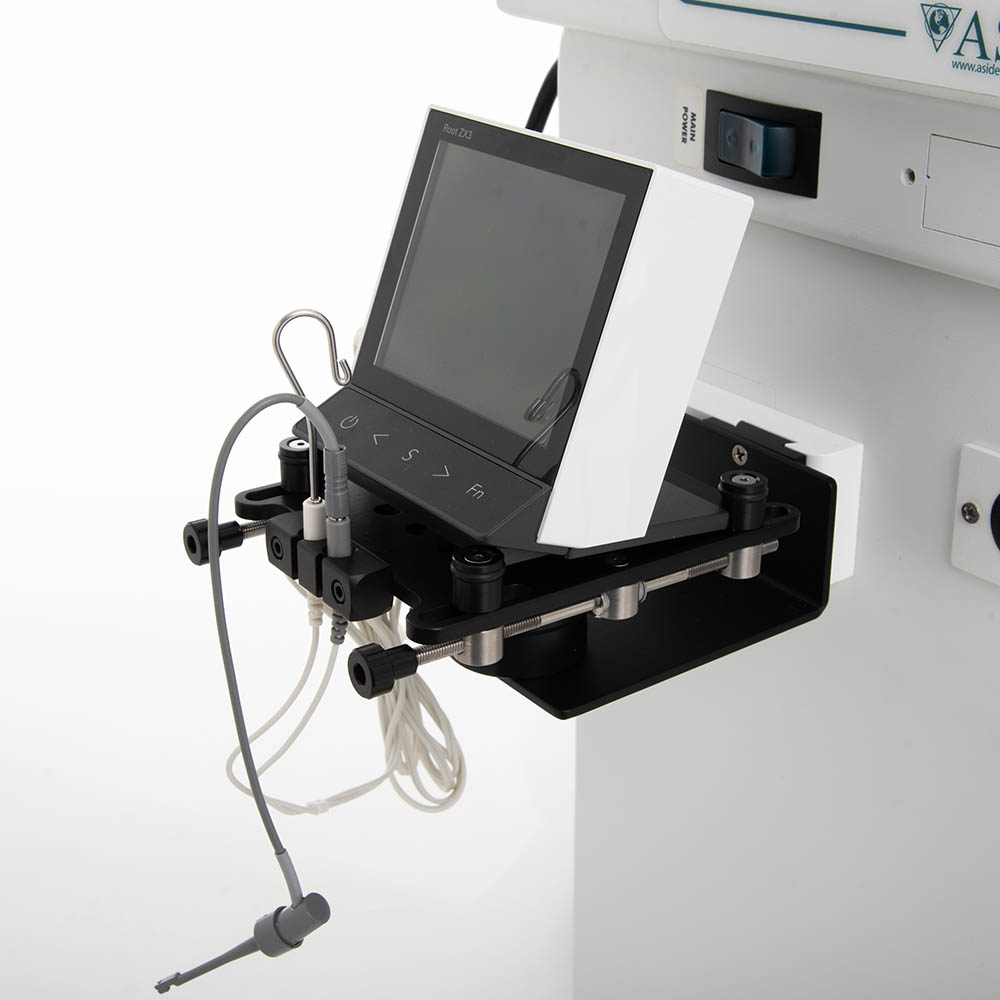

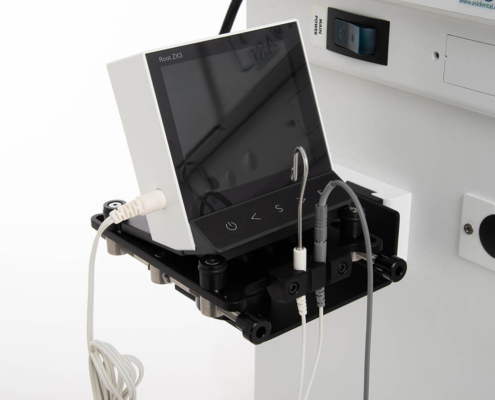

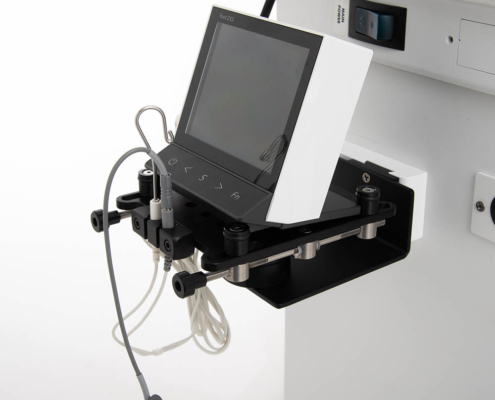

90-B025
Holder bar mounted with articulating ball joint. For use in any ASI delivery system.
90-B028
Vise bracket for apex locator mounted to side of cart with articulating ball joint. Clamping posts adjust from 2″ to 4″ with a platform size of 4″
Shown with J. Morita Root ZX2 not included

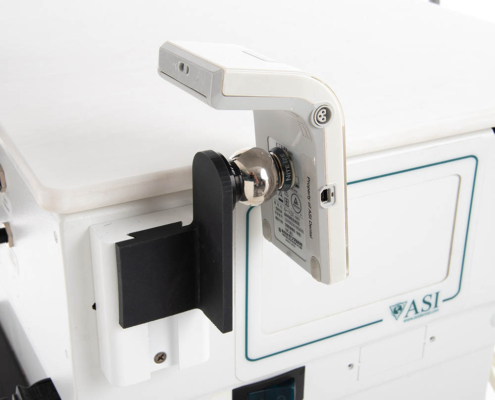

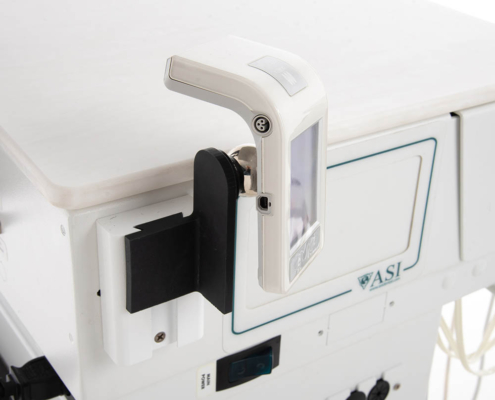

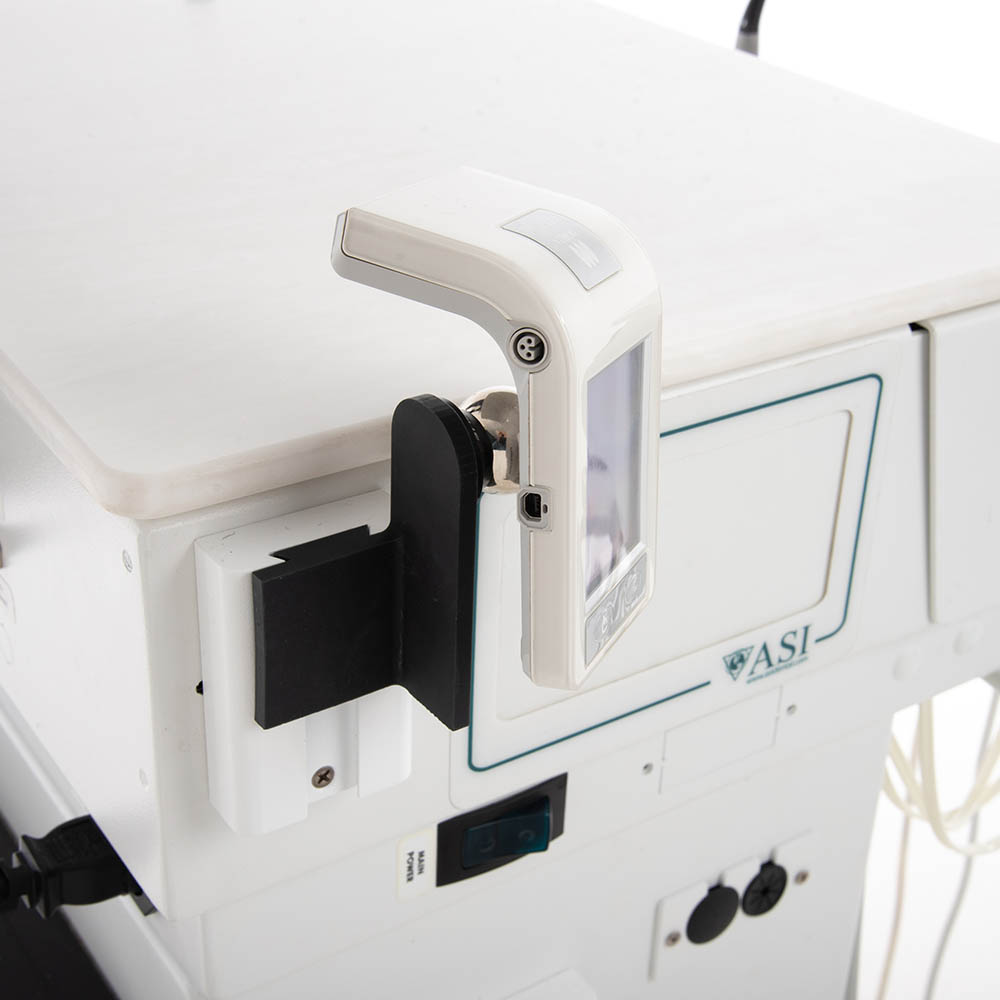

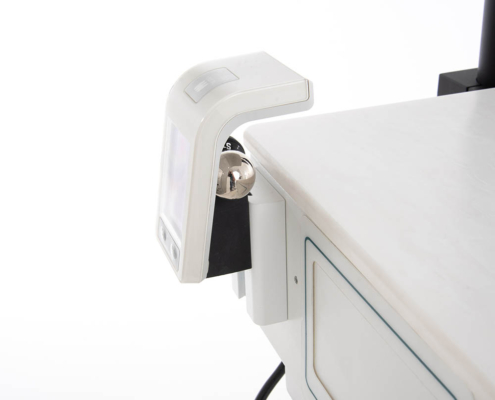

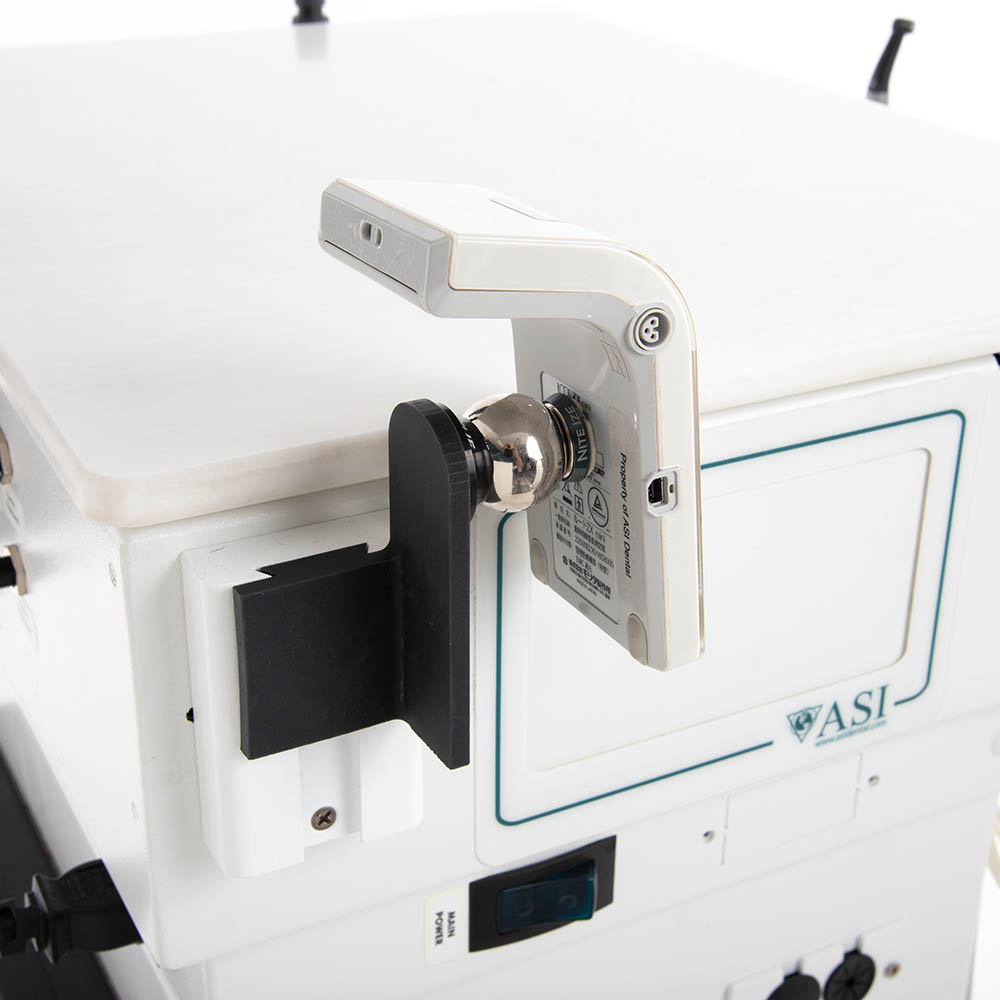

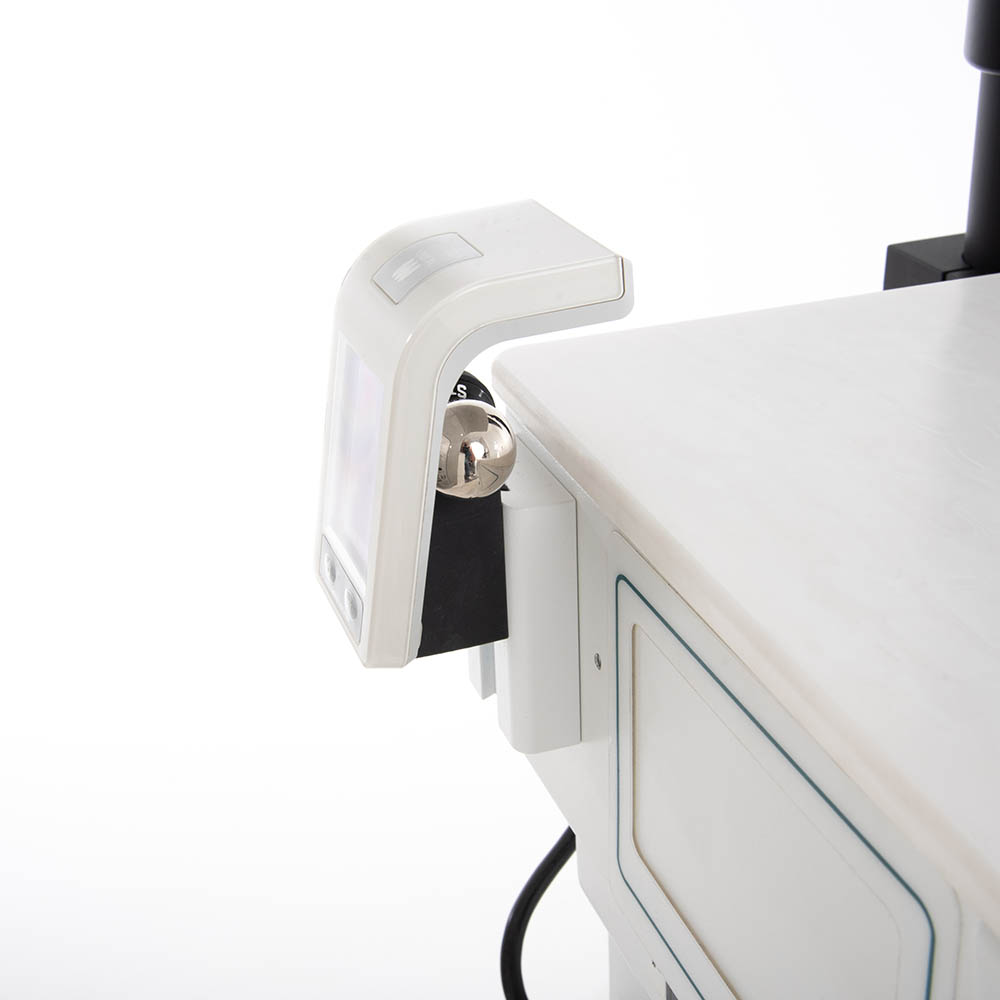

90-5711
J. Morita Root ZX Mini
Externally Bracket Mounted
90-B034
Bracket, Probe Cord Hanger
Attaches to side of Delivery System
Dual Slots for Cord Management

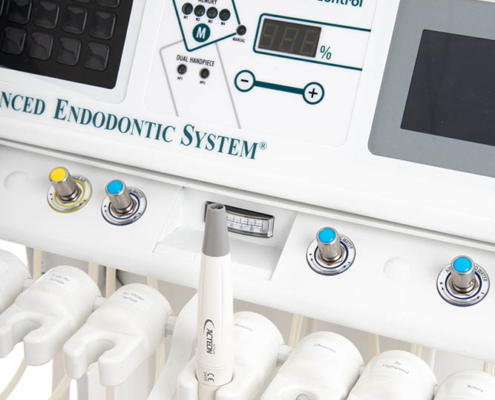

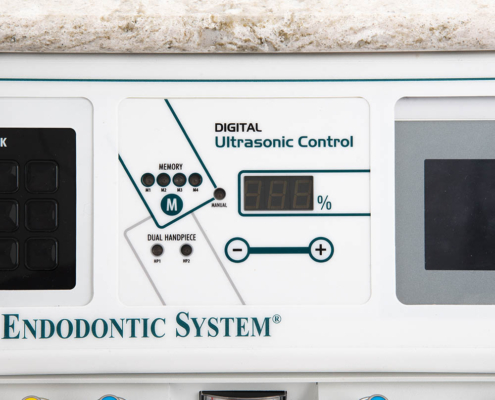

ASI Digital Ultrasonic Panel
ASI’s exclusive digital panel provides precise power settings with LED readout, memory capability, and the option of operating two handpieces from one module, saving time on tip set up. Satelec Ultrasonic
The Newtron™ technology ultrasonic module from Acteon was designed for the ultimate in full power range while providing integrated feedback to provide constant ultrasonic vibration to the tip. This allows you to adjust the power lower for sensitive endodontic tips, yet maintain the proper movement while bearing down. Full power at the high end allows you to easily remove posts.
90-5420
Single handpiece
Intergrate into Triton Standard Dental Systems
90-5421
Single handpiece

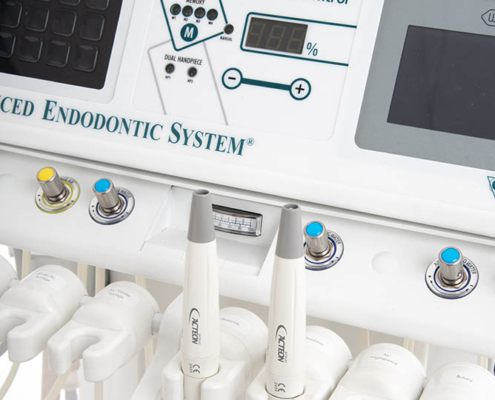

90-5421D
Dual handpieces
Acteon Ultrasonic with Digital Panel
90-5433
Osada ENAC US OE-F15
Integrated version with three tips (ST70Z, ST125, ST72)
90-5434
Integrated Cavitron Ultrasonic with Steri-Mate 360 Handpiece
90-2807
External Irrigation Roller Pump
Side Panel Mount
90-2807S
External Irrigation Roller Pump
for short adapter plate used on classic series
90-5435-CP
Acteon P5 Dentsply Pro Ultra Ultrasonic – Bracket-mounted
90-5436-CP
Cavitron SPS Ultrasonic – Bracket-mounted
90-5452-CP
NSK Various 370 Ultrasonic – Bracket-mounted
90-2741U
Ultrasonic Irrigation Upgrade – Dedicated irrigation bottle with 1/8″ tubing mounted to attach to ultrasonic tubing. Attaches to ultrasonic tips with external irrigation port (tip not included). Irrigation will flow when foot control is pressed and stop when foot control is released. This allows the ultrasonic vibration to occur while dispensing solution in the canal. Requires Irrigation System to be purchased separately.
Obturation
B&L, Dentsply/Calamus, Obtura, Sybron
90-5716M
B&L Beta Mini Cordless Extruder
90-5717
B&L Alpha Cordless Heat Tip
90-B029
B&L Bracket
Mounted on a single block onto holder bar
90-B030
B&L Bracket
Mounted to chassis
90-B031
B&L A and B Bracket
Mounted one up, one down
90-B036
Bracket mount for Calamus Dual obturation system; side mounted to cart with holders on bar.
Shown with Calamus Dual not included.
90-B037
Bracket mount for Calamus Flow obturation system, bar-mounted with block holder to any ASI delivery system.
90-5758BS
Obturation system with short side display panel. Includes gun holder, protective bracket and integration with an ASI Classic Series delivery system.
90-5758B
Obturation system with full display panel. Includes gun holder, protective bracket and integration with an ASI Advanced delivery system.
90-5179-CP
Enclosure for Touch N Heat™ with Handpiece Holder

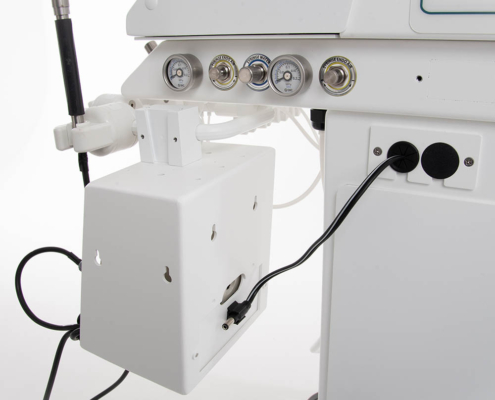

90-5764-CP

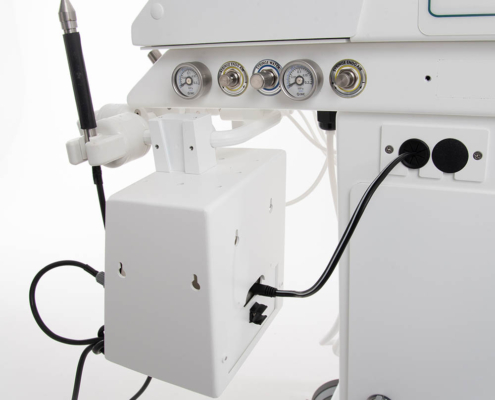

Enclosure for System B™ with Handpiece Holder

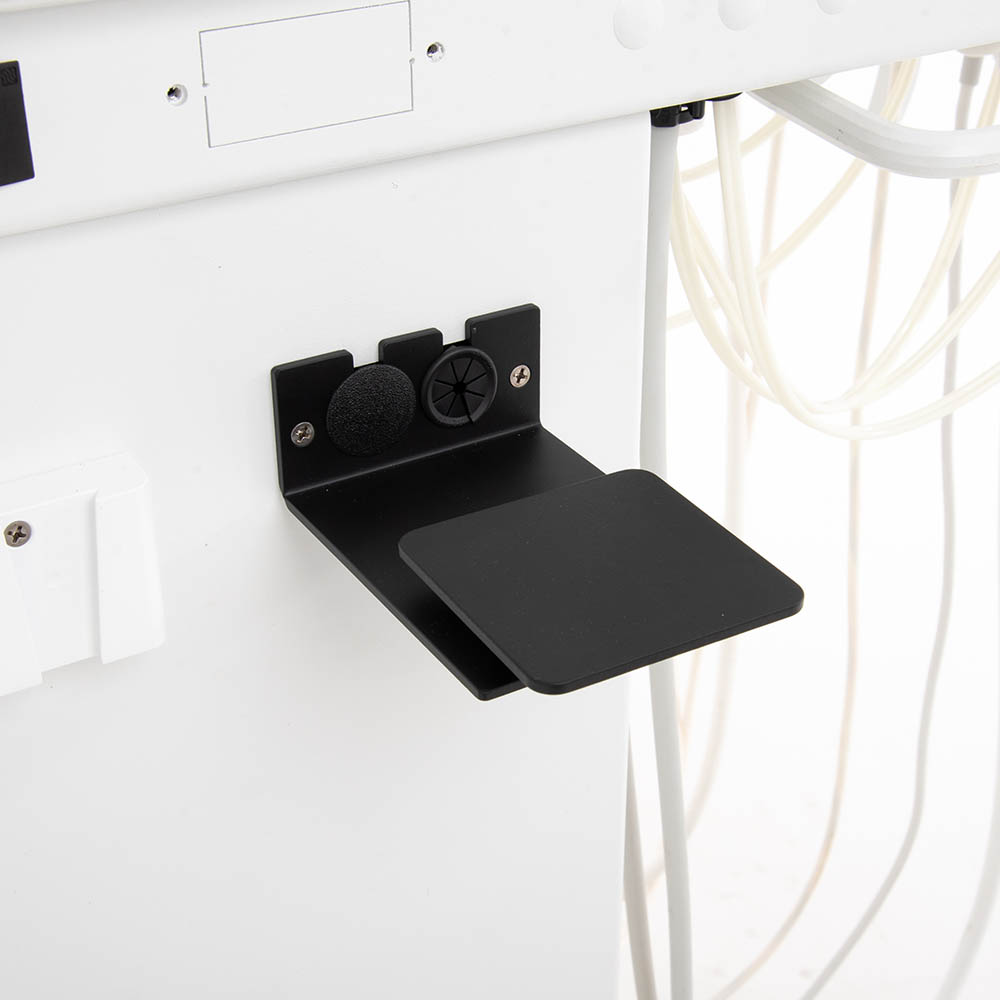

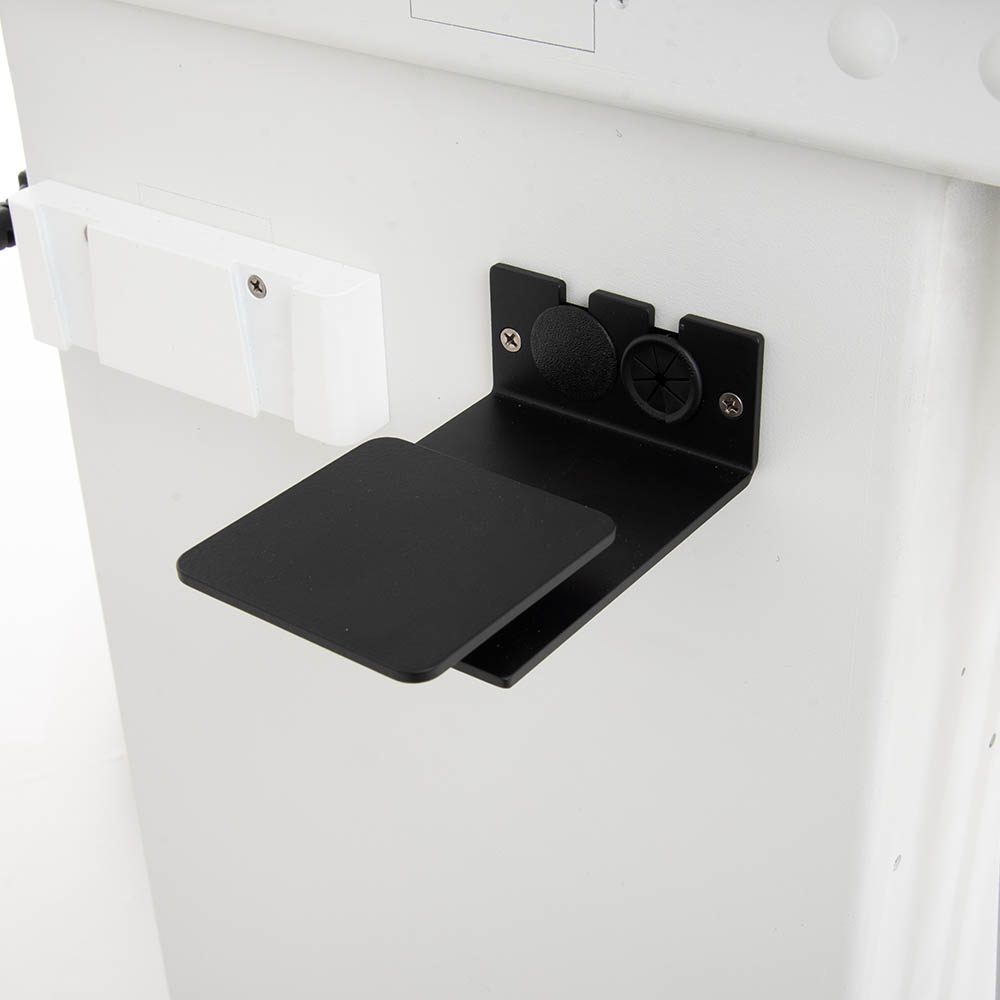

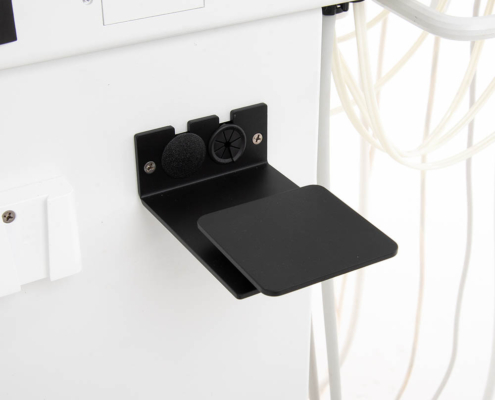

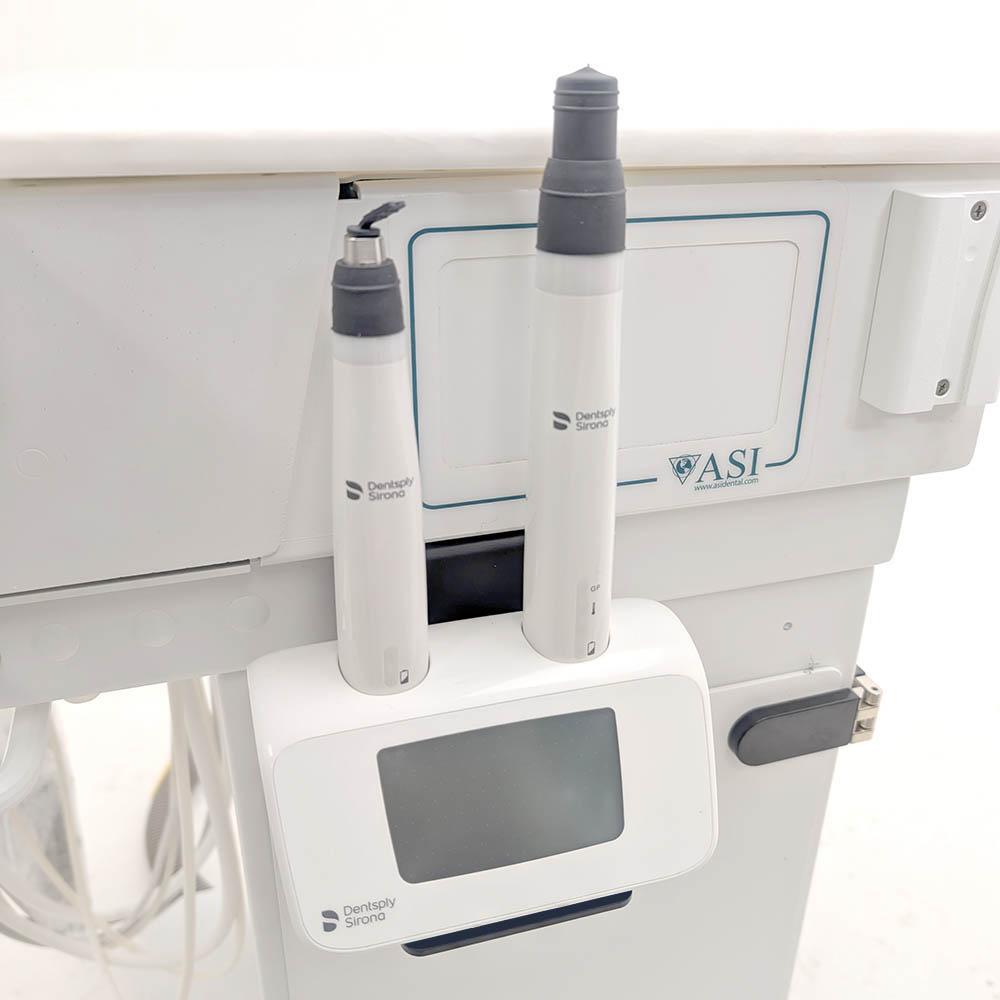

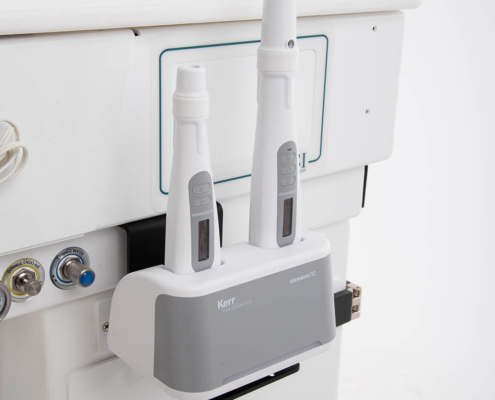

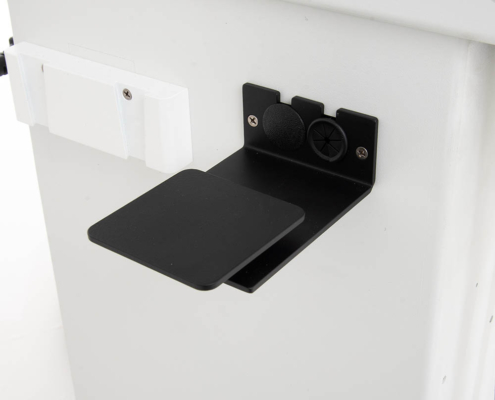

90-B045
Generic Wireless Obtruation Unit – Bracket-mounted
Fiber Optics Handpiece Tubing
About Fiber Optics 5 Hole or 6 Pin Connections
ASI’S pneumatic connections are standard and accommodate handpieces made to ISO standards. The connection provides:
Drive Air – Air travels up the tubing to operate the turbine in high speed handpieces or the air motor in air-driven low speed handpieces.
Exhaust Air – As drive air leaves the turbine or air motor, it exhausts down this tubing and exits through the oil mist recovery jar.
Chip Air – An air stream which blows onto the cutting bur; assists in removing debris; aids in visibility and cutting while using a highspeed handpiece. Also used to atomize coolant spray. Not all air driven high speed handpieces are ported for chip air; verify this option for the brand of handpiece being used.
Coolant Spray – Allows water to flow up to high speed handpieces and to be sprayed onto the bur.
Blank Hole or Fiber Optic Connection – Non-operative, but allows the use of fiber optic handpiece in standard non-fiber optic connection. If tubing is fiber optic, it will have a bulb for 5-Hole connections or two sockets for 6-Pin fiber optic handpiece connections.
90-5012S-5, 90-5012L-5
Five hole fiber optic system for a single handpiece. Includes 50″ or 60″ of handpiece tubing.
90-5012S-6, 90-5012L-6
Six pin fiber optic system for a single handpiece. Includes 50″ or 60″ of handpiece tubing.
90-5013XL-5
Five hole fiber optic system for a single handpiece. Includes 72″ of handpiece tubing.
90-5013XL-6
Six pin fiber optic system for a single handpiece. Includes 72″ of handpiece tubing.
Miscellaneous Instruments
Curing Lights, Micro Etcher
90-5054
Ultradent VALO Curing Light with Holder
The highly-rated LED curing light by Ultradent makes an ideal all-in-one system that fits into a handpiece holder for easy access. The system includes five LED’s and cures all brands and ranges of resins. The optional Endo Guide Tip is idea for retrofills and other narrow preparations. The system package also includes orange and green trans-illuminator tips for identifying caries, cracks, and tooth defects.
90-5306
MicroEtcher IIA
Complete with Holder and Regulator
90-2831
Yirro Mirror
Air flow dental mirror startset with manual on/off air regulator, 4 handles, 4 mirrors (2 small No. 0 for endodontics and 2 medium No. 2 for general use), docking station and air connection supplies. Compatible with dental unit.
90-5602
Stream Deck Cart Integration
Integration of Stream Deck MK.2, black, in Advanced Cart
90-5176
Accutron Nitrous System Integration
Integration for customer-supplied nitrous-oxide system including mounting and inter connections of flowmeter, distribution manifold, main control module, and tubing connections through umbilical.
90-5177
Belmed Nitrous System Integration
Integration for customer-supplied nitrous-oxide system including mounting and inter connections of flowmeter, distribution manifold, main control module, and tubing connections through umbilical.
90-5178
Porter Nitrous System Integration
Integration of customer-supplied nitrous-oxide system including mounting and inter connections of flowmeter, distribution manifold, main control module, and tubing connections through umbilical.
