Model 90-2044
Freedom Rear Wall Dental Delivery System Full Worktop
1
2
3
4
5
6
1
Optional Monitor Mount
Monitor not included
2
WilsonArt Work Top – Arctic Dune Color
3
Slide Out Tray
For keyboard or additional instrument storage.
4
ASI Rail Storage System
Great for handpiece holders and bracket mounted storage options.
5
Storage Drawers
Keep supplies close at hand.
6
Industrial Strength Casters
For durability and easy maneuvering
Product Details
Features & Benefits
The standard model is a full-powered cart and features a bank of storage drawers supported by commercial grade, dual tread casters, white paint, and WilsonArt® worktop.
- 2 air handpiece connections – 1 high speed, 1 low speed
- 1 air/water syringe
- Integrate up to two instruments
- Instrument air and water convenience outlets
- Suction Instruments – 1 straight HVE, 1 saliva ejector
- One liter water bottle supply includes DentaPure disinfection cartridge good for one year.
- Solids trap
- Slide out keyboard tray
- 6 all-metal storage drawers:
- 3 Small
- 3 Medium
- Enclosed 5-position power strip in back of cart
- ASI’s Rail Storage System for custom configurations

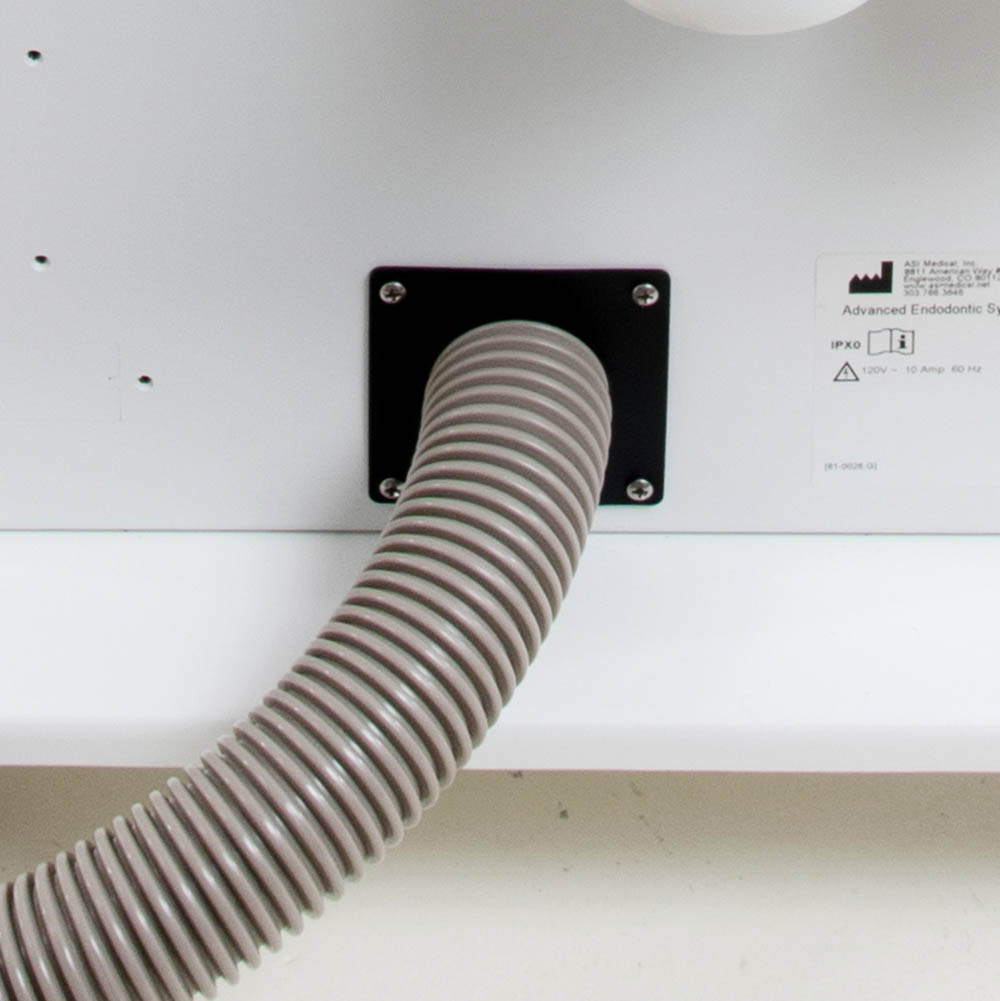

- Computer integration and cable management availability on rear of unit. Computer can be placed inside or external mounting for Form Factor computers on back of cart below monitor. Data cabling access holes provide entrance into cart and to exit cart through umbilical to junction box.
Structural
- Full one eighth inch thick wall aluminum chassis with durable powder coat finish
- WilsonArt® work surface
- Optional Silestone® worktop upgrade available
- High duty commercial dual tread casters feature quiet and easy rolling design, 3″

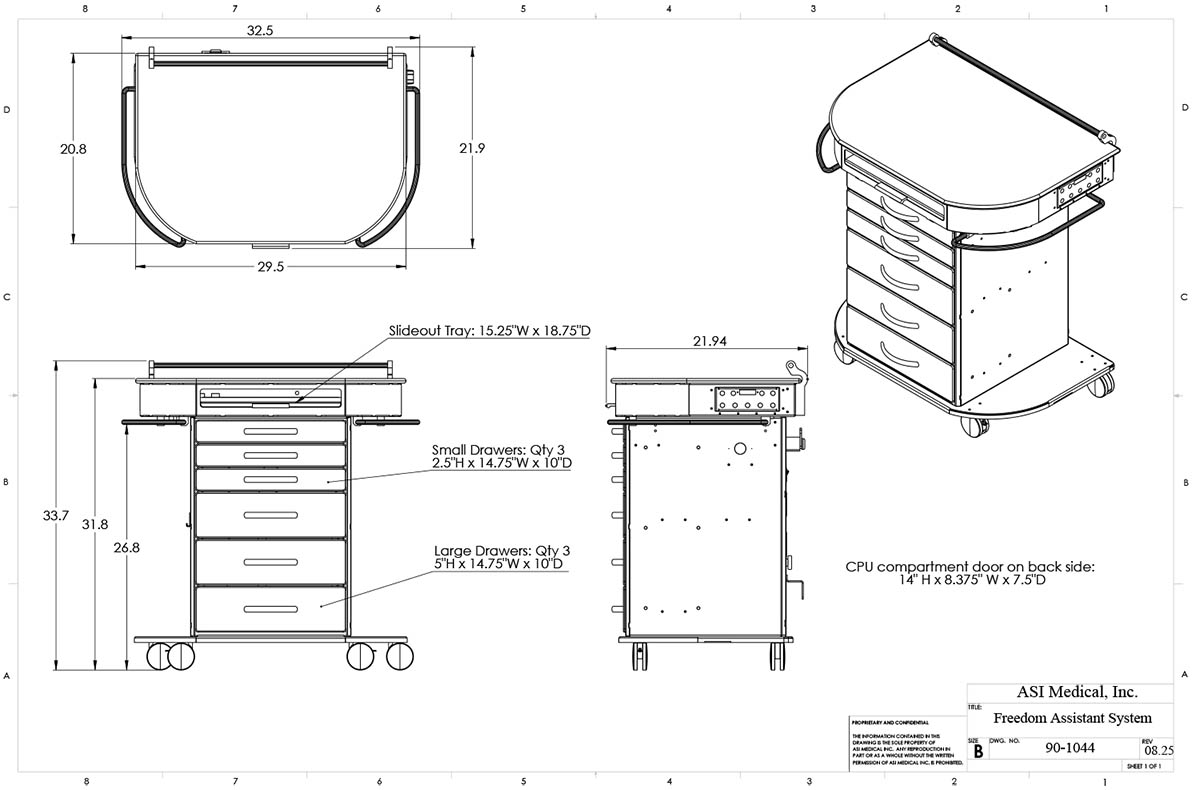

Dimensions
Freedom Model Comparison
Freedom Rear Wall Dental Delivery System Full Worktop
Model: 90-2044
Storage drawers, rear CPU storage compartment, slide-out tray and solid surface sliding worktop. Includes two pneumatic handpiece connections, air/ water syringe, straight high-volume evacuator, saliva ejector, and one-liter water system with integral water line disinfection cartridge. Rail storage accessories include two storage bins, one shelf, and one small hazard waste bin. White powder coat finish, solid surface worktop, and heavy-duty 3″ casters.
ASI’s new Freedom Dental Delivery System elevates an esthetic design preference by concealment of the operating knobs and controls. Ideal for the modern office looking for that high quality and minimalist appearance in a dental unit. The curved shaped formed with modern metal design provides architectural interest and enhanced appeal.
Can be equipped with dual sets of instruments to serve two chairs if desired. Keyboard slide, drawer storage and internal computer component mounting. Optional accessory brackets to customize the system to your needs.
